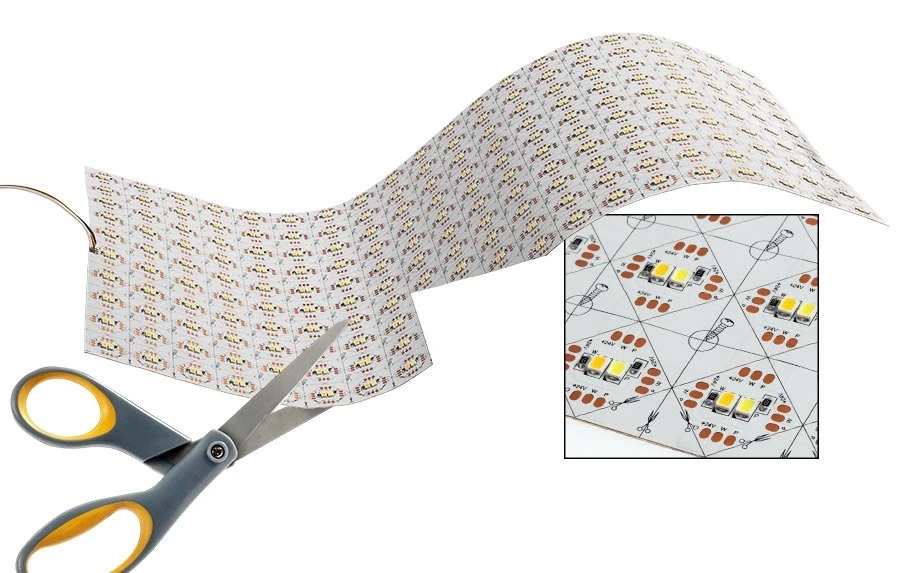

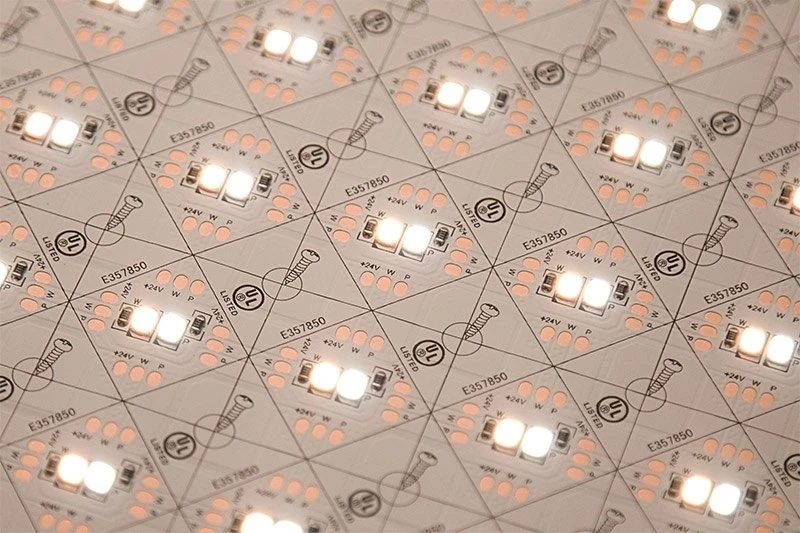

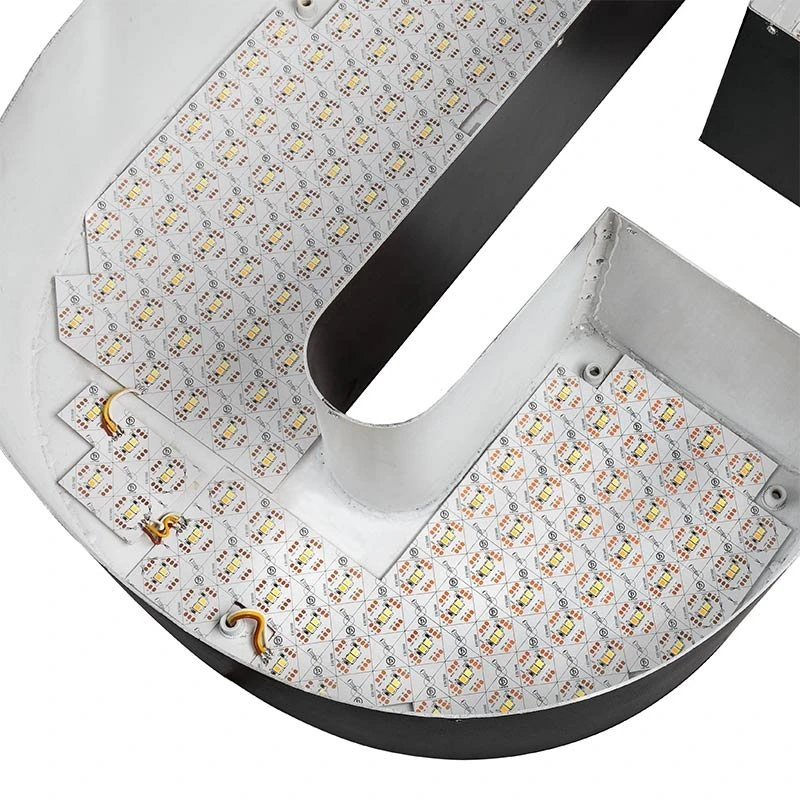

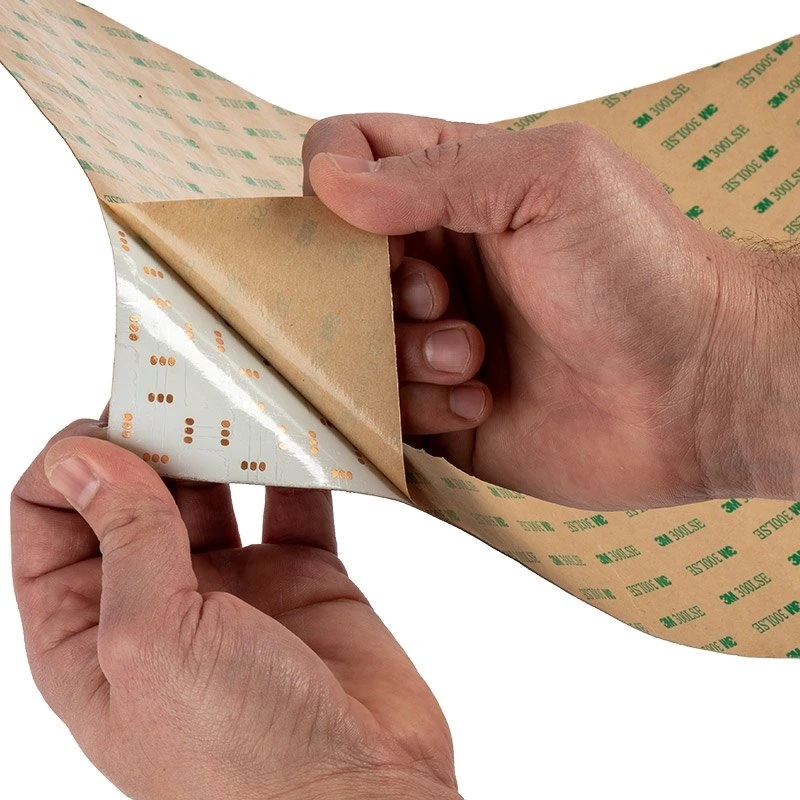

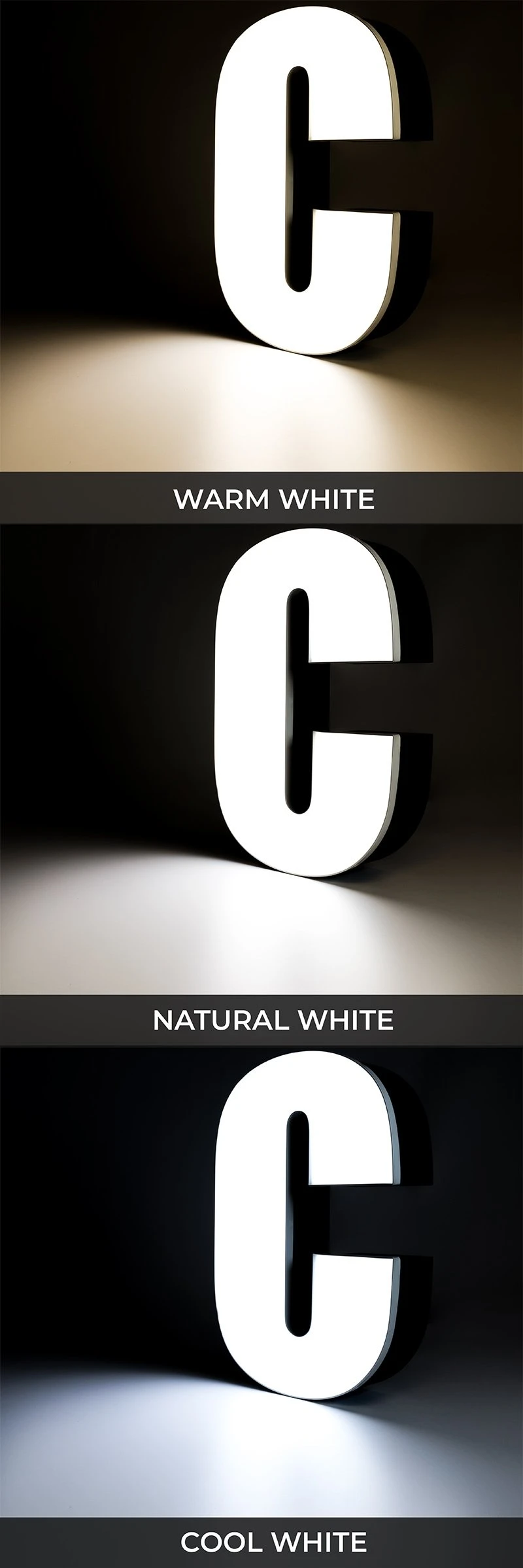

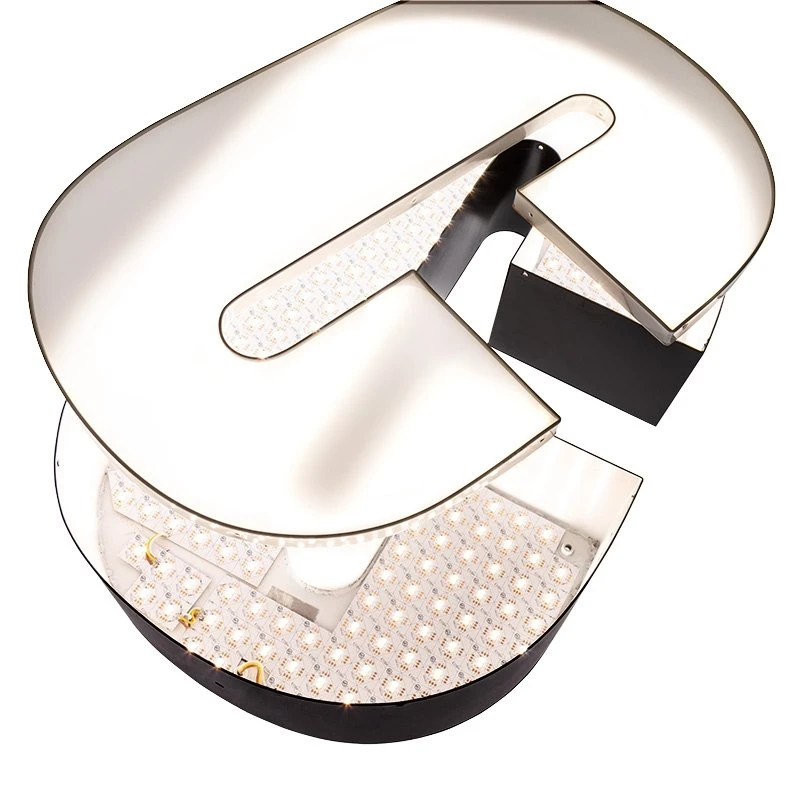

Wrap corners and trim to fit a unique shape with LLS series LED Light Sheet. Cut along the horizontal, vertical, or diagonal black lines of the 20 x 10 rows to customize the flexible sheet. Even in signs or backlighting with low clearance, the high density of LED chips ensures even light distribution. Peel off the 3M™ adhesive backing, or fasten it with screws at the indicated spots to apply this light sheet. It can be tuned to emit the exact temperature of white needed for changing occasions.
Please refer to the specification sheet for cutting recommendations. Using only the pre-marked lines when cutting the sheet is essential to maintaining electrical contact.
Product Details:
- Dimmable
- Max Run with Class 2 wiring: 1.5 sheets

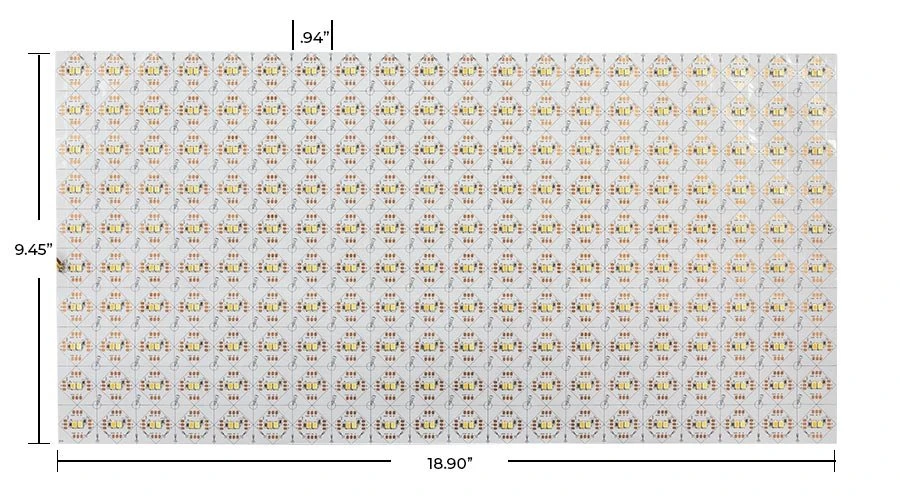

- Dimensions: 18.9″ x 9.5″
- Enclosed fixture rated 36 mm
- IP20 rated for dry conditions
- 50000 hours L70 lifespan
- 24 VDC
- UL Listed
- 5-year warranty
| Ambient Operating Temperature | -20~+45 °C (-4~+113 °F) |
|---|---|
| Input Connection Type | Pigtail |
| Rated Life (L70) | 50000 Hours |
| Power Consumption | 60 Watts |
| Operating Voltage | 24 VDC |
| Max Run (Class 2) | 1.5 Sheets |
| LEDs per Segment | 2 |
| LED Type | 2835 SMD |
| LED Beam Angle | 120° |
| IP Rating | IP20 |
| Finish | White |
| CCT Value | 2700-6500K |
| Environmental Rating | Non-weatherproof |
| Enclosed Fixture Rated | Yes |
| Efficacy | 92 lm/W |
| Dimmable | Yes |
| Dimensions | 18.9in x 9.5in |
| Current Draw | 2.5 A |
| Color/CCT | Tunable White |
| CRI | 80+ |
| Certifications/Compliance | CE, UL Listed |
| Segment Size | 0.95 in. x 0.95 in. (24 mm x 24 mm) |
