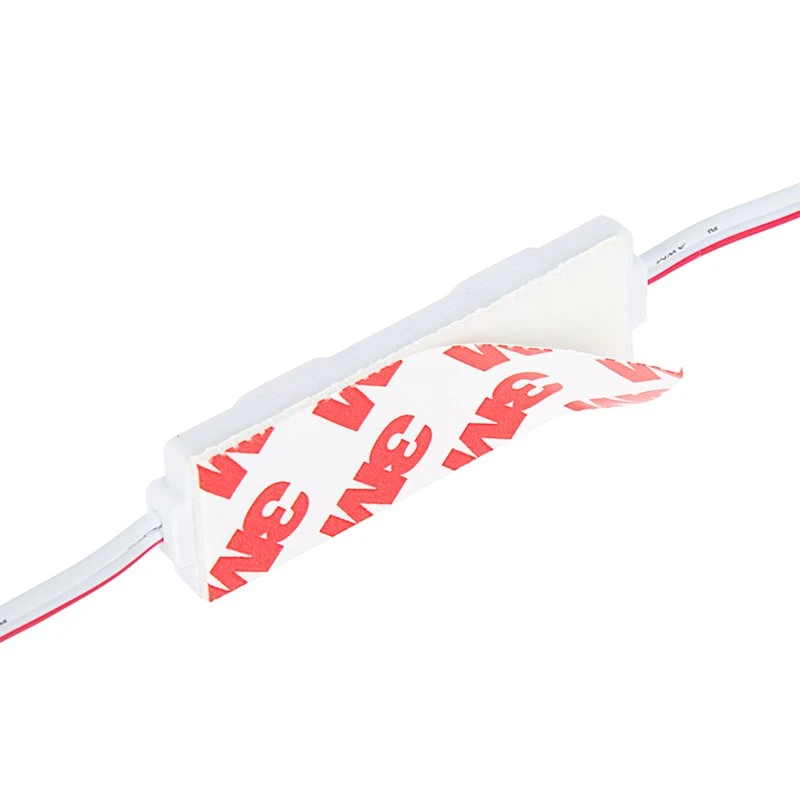

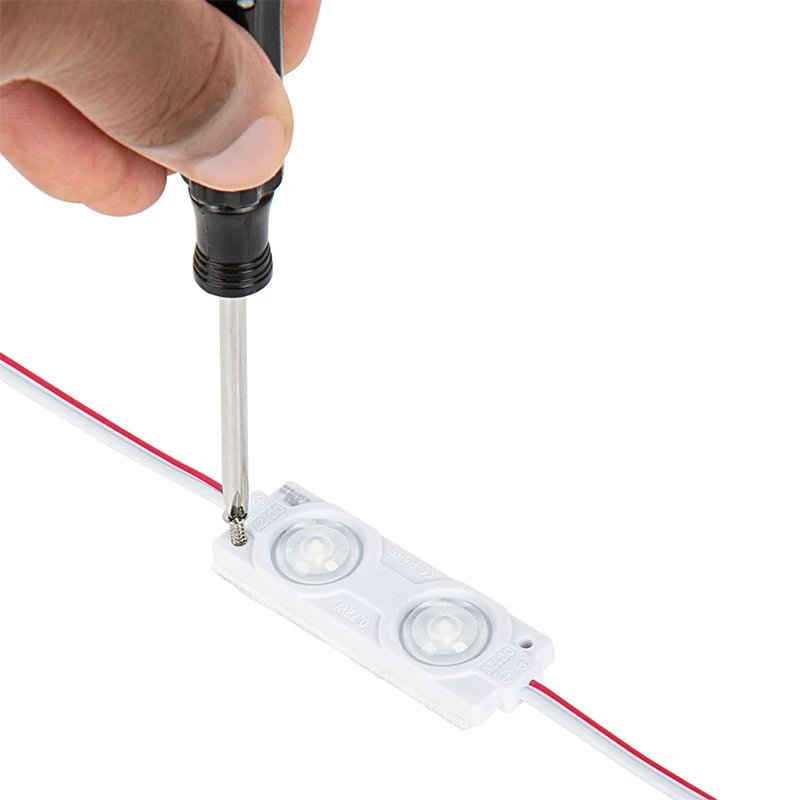

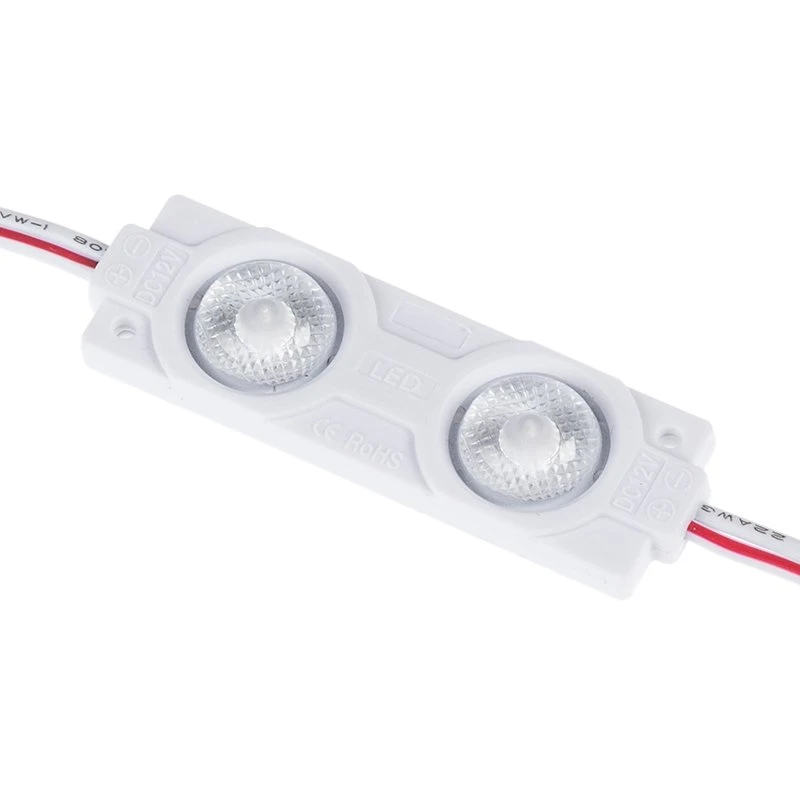

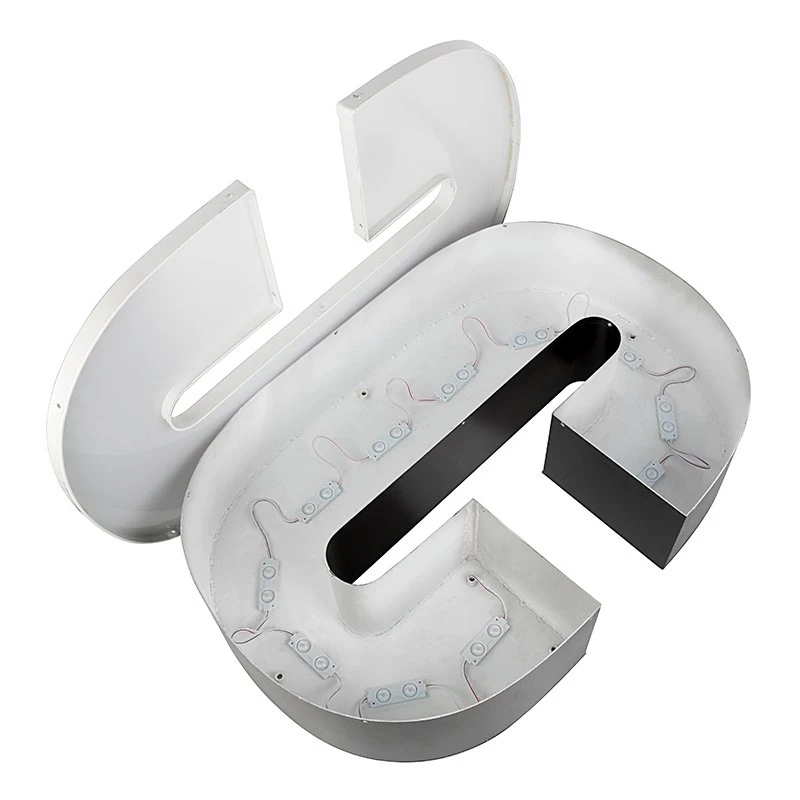

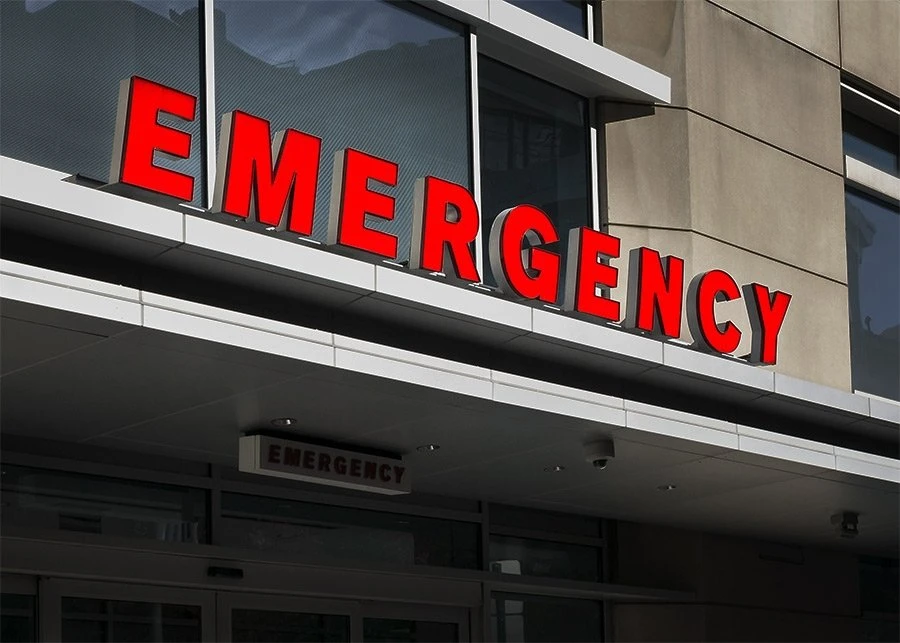

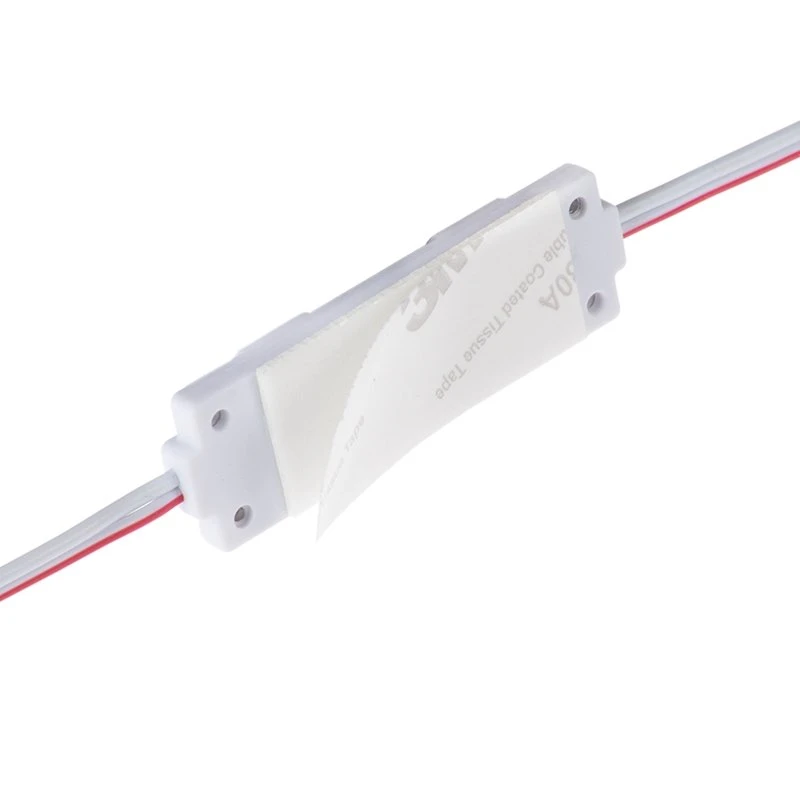

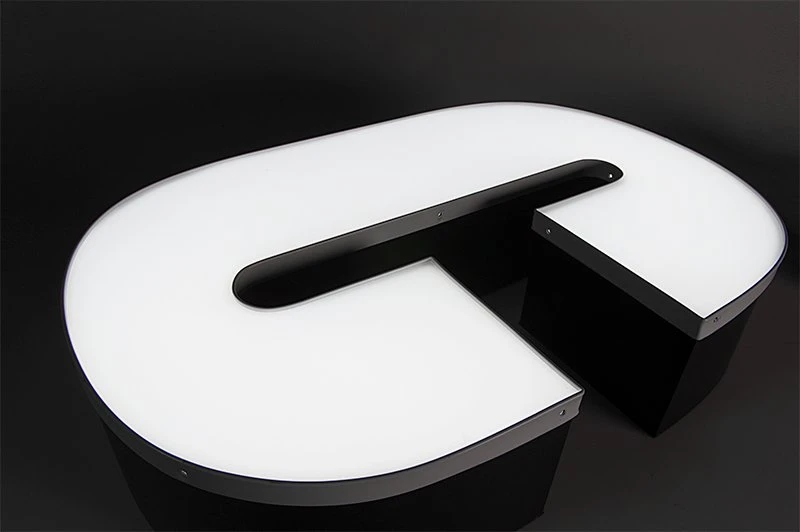

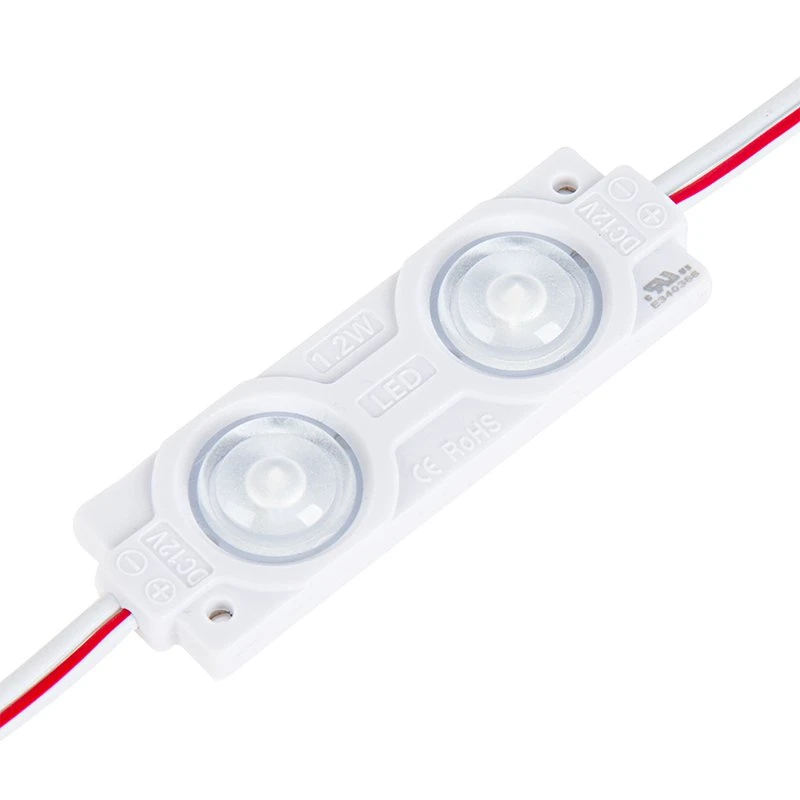

With high quality optic design, the SMCC2 series LED Modules provide a wide beam of light ideal for sign backlighting, channel letters, stage construction, and more. Each module contains 2 LEDS, and a lens to ensure a smooth, broad illumination free of hotspots. Screw holes allow for more permanent mounting, while 3M™ adhesive backing simplifies set up and take down for trade shows displays. A flexible solution for sign and display builders, electrical contractors, or OEMs, these modules have sealed weatherproof housing to be used in an array of lighting design applications.
- Dimmable with optional controllers

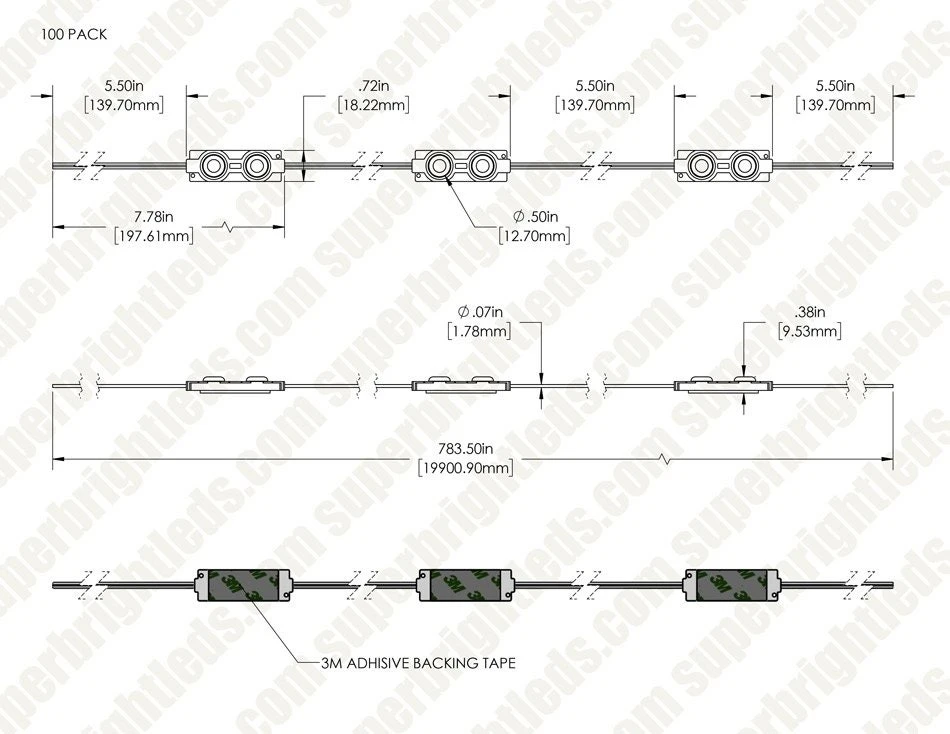

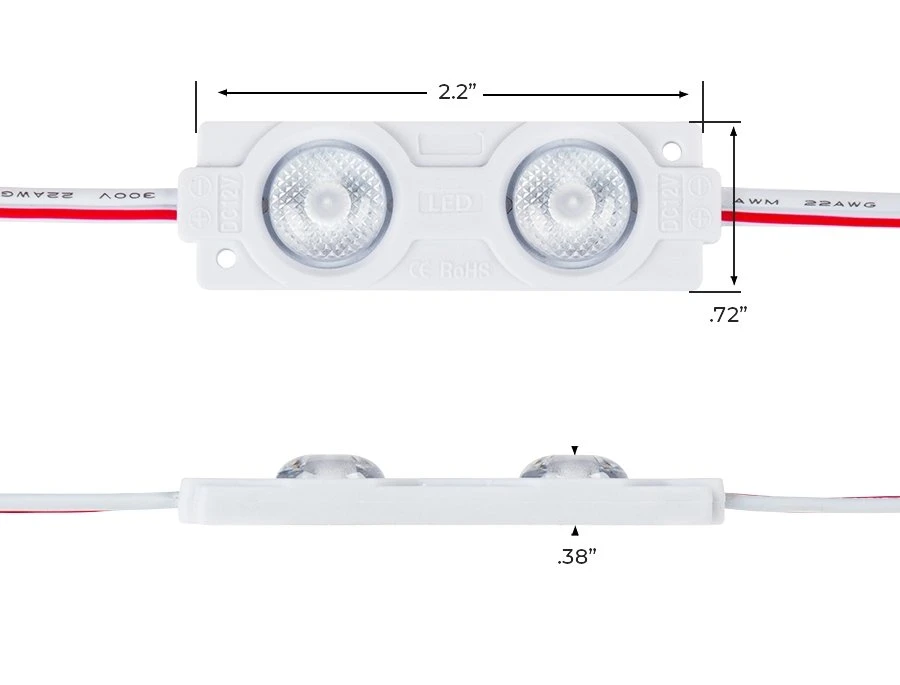

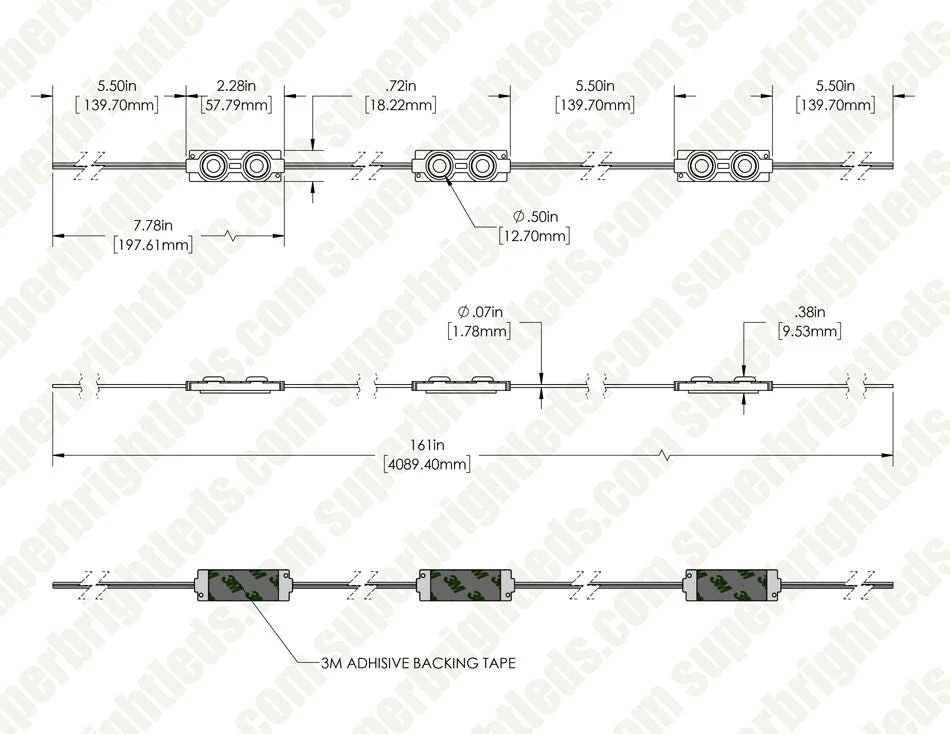

- Each module measures 2.28″x0.72″

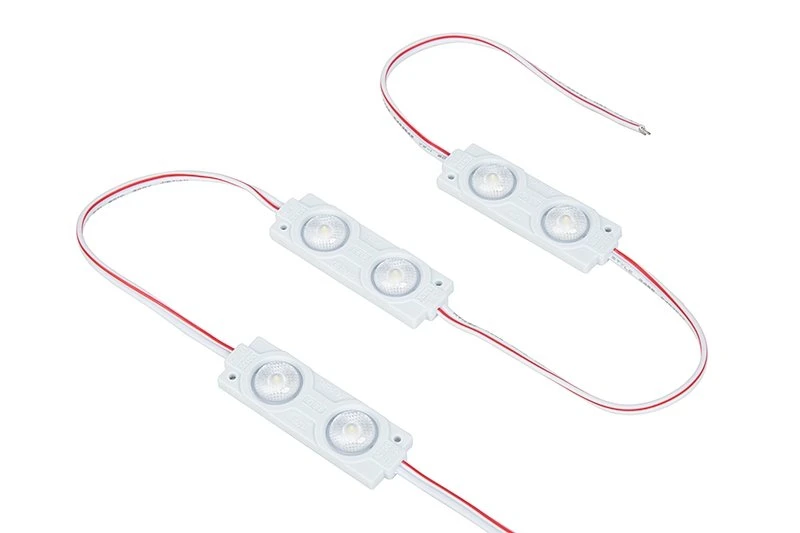

- 5.5in of wire between each module
- Max run: 30 modules
- Requires a constant voltage power supply
- 35000 hours L70 lifespan
- Rated IP65 for wet locations
- UL Recognized Component, CE
- 5 year warranty

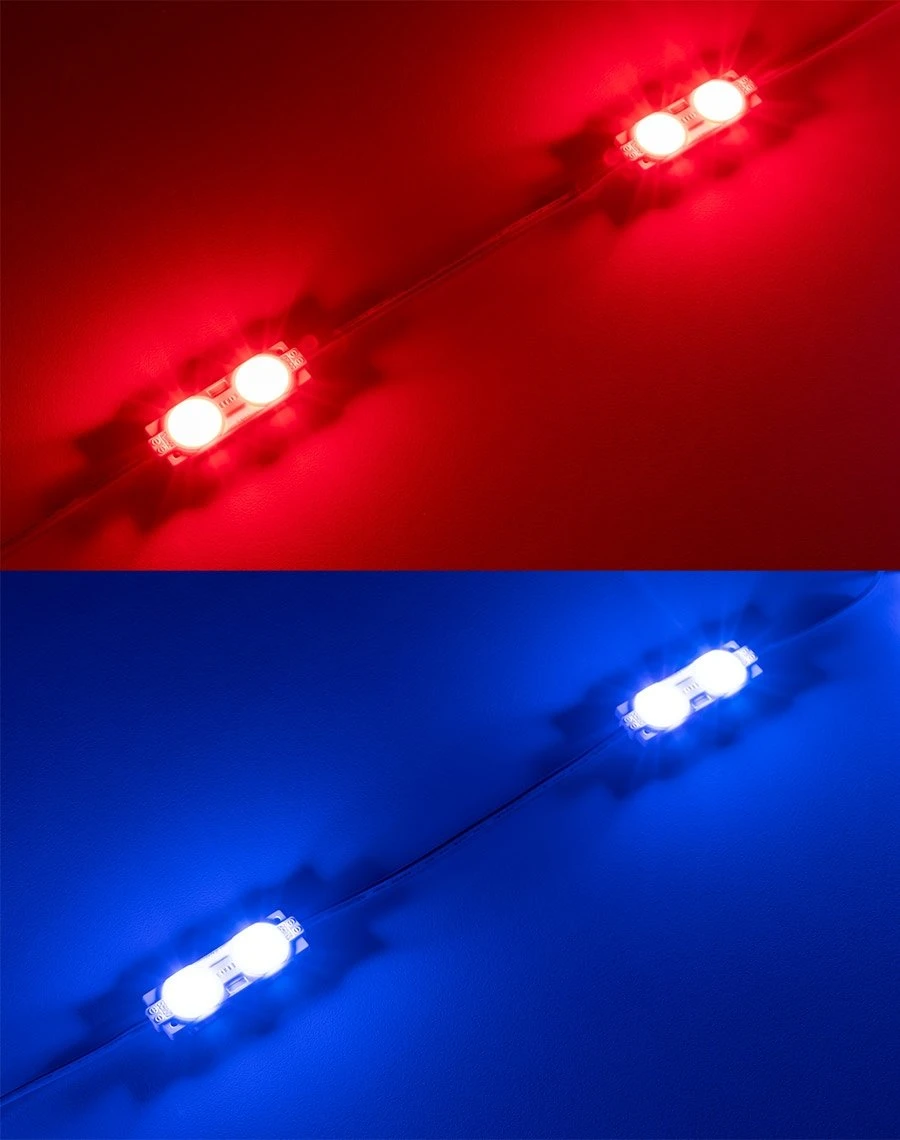

| Color Options | Cool 6500K, Natural 4000K, Blue, Red |
|---|---|
| Pack | 20-Pack, 100-Pack |
| Beam Angle | 170° |
| Constant Current | Yes |
| Dimming Type | Pulse Width Modulation (PWM) |
| Enclosed Fixture Rated | Yes |
| Connection Type | Pigtail |
| LED Lifetime | 35000 Hours |
| LED Type | 2835 SMD |
| Material | Plastic |
| Max Run (# of Modules) | 30 |
| Operating Temperature | -20~+45 °C (-4~+113 °F) |
| Standards And Certifications | CE, UL Recognized |
| Voltage | 12 VDC |
