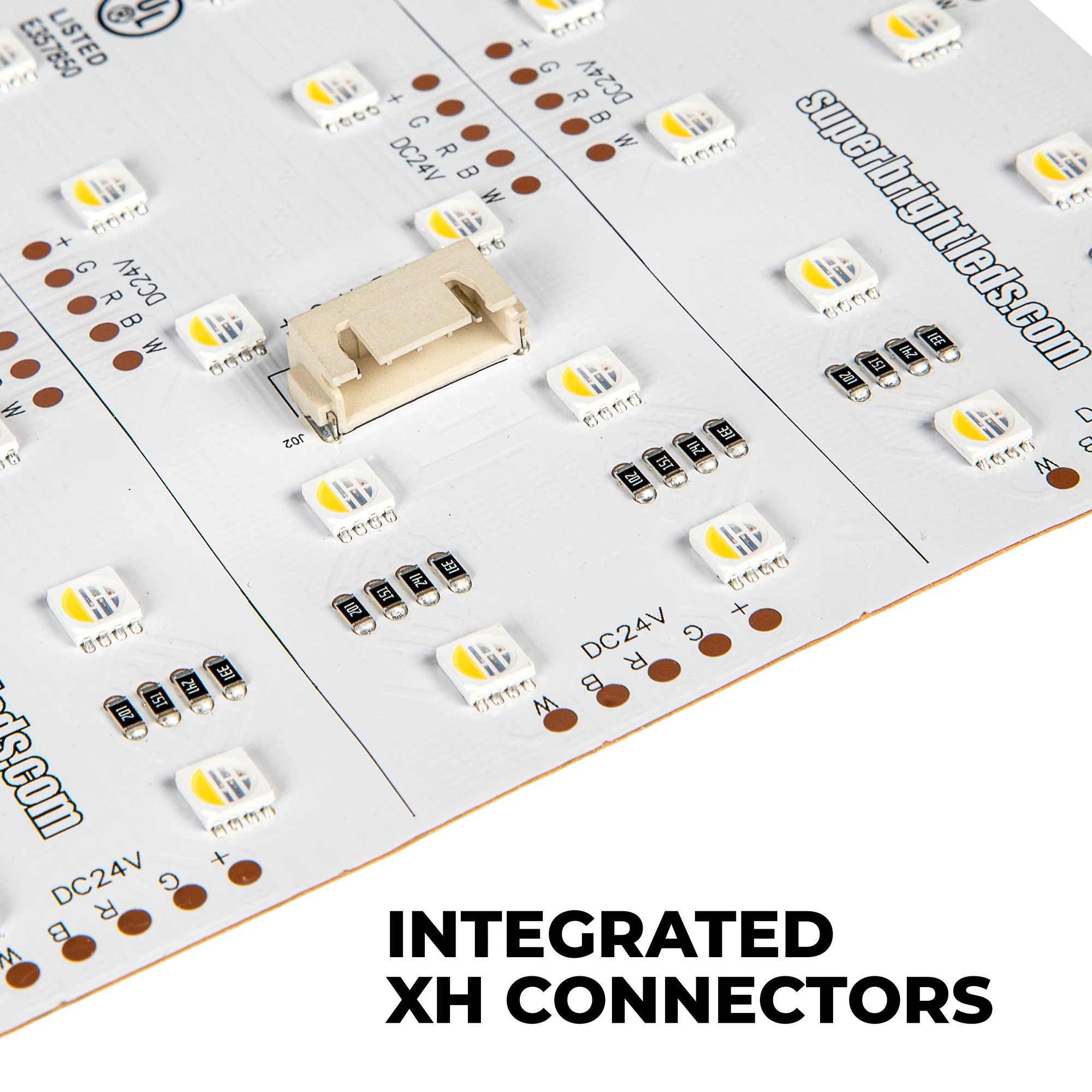

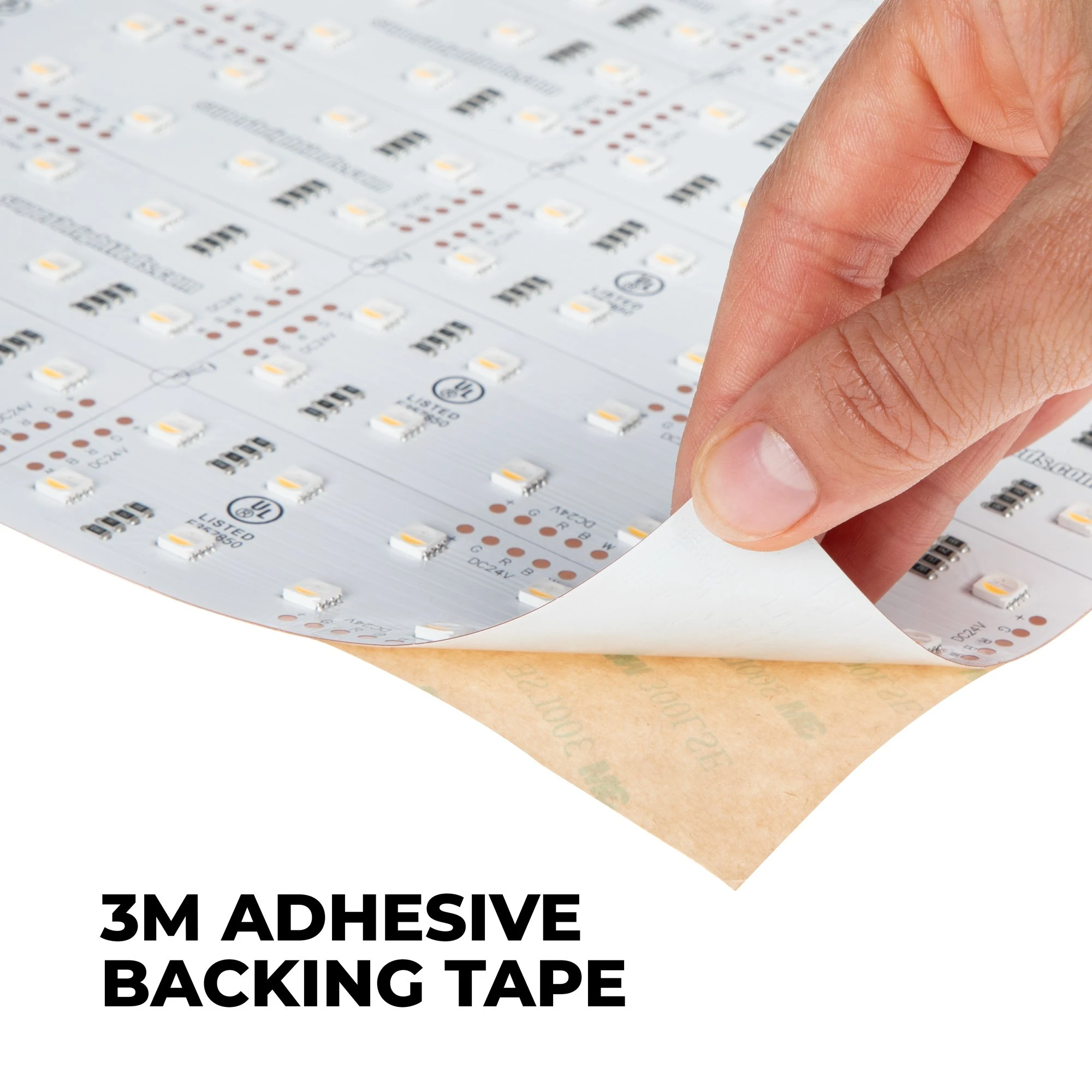

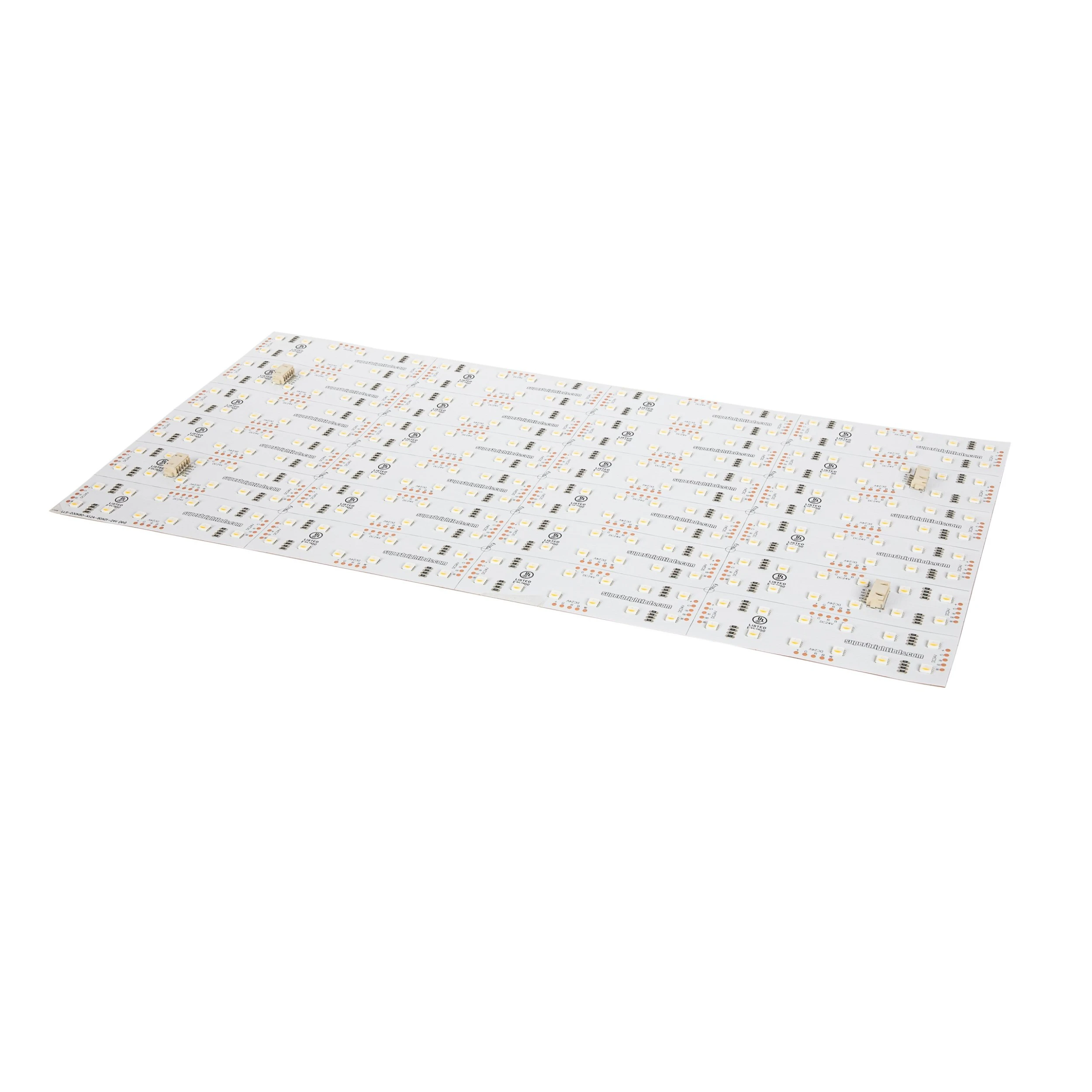

The RGB+W LED light sheet is fully customizable, color-changing, and adaptable for light boxes, logos, billboards, and more. The segments have cut lines along the board to shape the light sheet to the application, ideal for signs or backlighting. On-board XH connectors eliminate soldering and simplify installation. To connect multiple light sheets, use the included interconnect cable. To install, use the 3M™ adhesive backing, or fasten it with screws at the indicated spots.
Product Details:
- Segment size: 4.72″ x 1.57″- 24 segments per sheet
- Max Run with Class 2 wiring: 1 sheet
- Input connection: 5-pin XH connector
- Includes one 0.5m pigtail connector and one 8cm interconnect
- PWM dimmable
- 24 VDC
- UL Listed
- 5-year warranty
| Color Options | RGB+CW 5000K, RGB+NW 4000K, RGB+WW 3000K |
|---|---|
| LED Beam Angle | 120° |
| Rated Life (L70) | 50000 Hours |
| Power Consumption | 80 Watts |
| Output Connection Type | XH 5-Pin Connector |
| Operating Voltage | 24 VDC |
| Max Run (Class 2) | 1 Sheet |
| LEDs per Segment | 12 |
| LED Type | 5050 SMD |
| IP Rating | IP20 |
| Ambient Operating Temperature | -20~+45 °C (-4~+113 °F) |
| Input Connection Type | XH 5-Pin Connector |
| Finish | White |
| Enclosed Fixture Rated | Yes |
| Dimmable | Yes |
| Dimensions | 18.9in x 9.5in |
| Current Draw | 3.3 A |
| CRI | 80+ |
| Certifications/Compliance | UL Listed |
| Segment Size | 4.72 in. x 1.57 in. (120 mm x 40 mm) |
