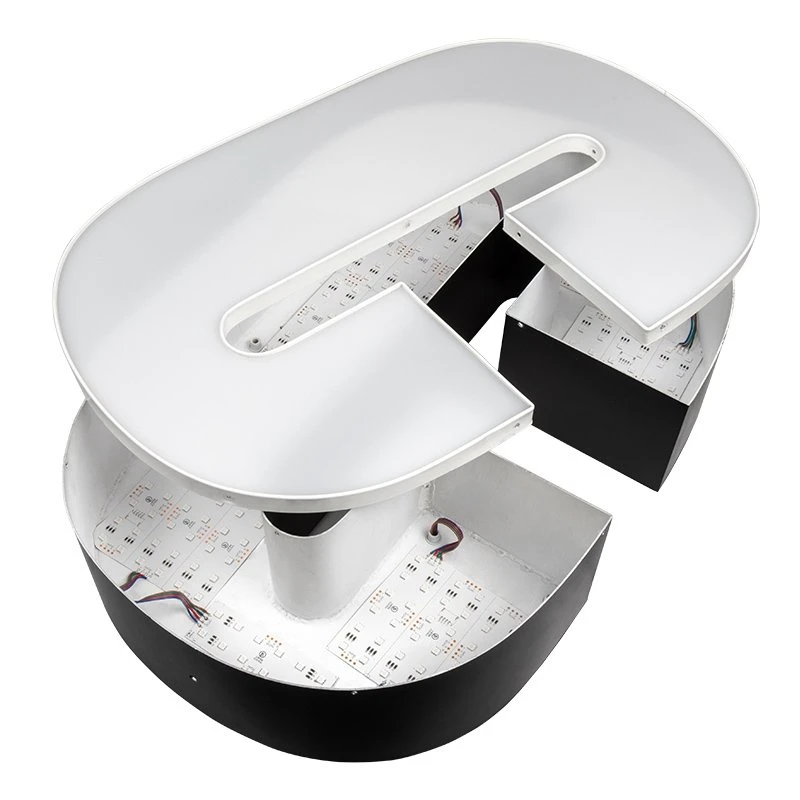

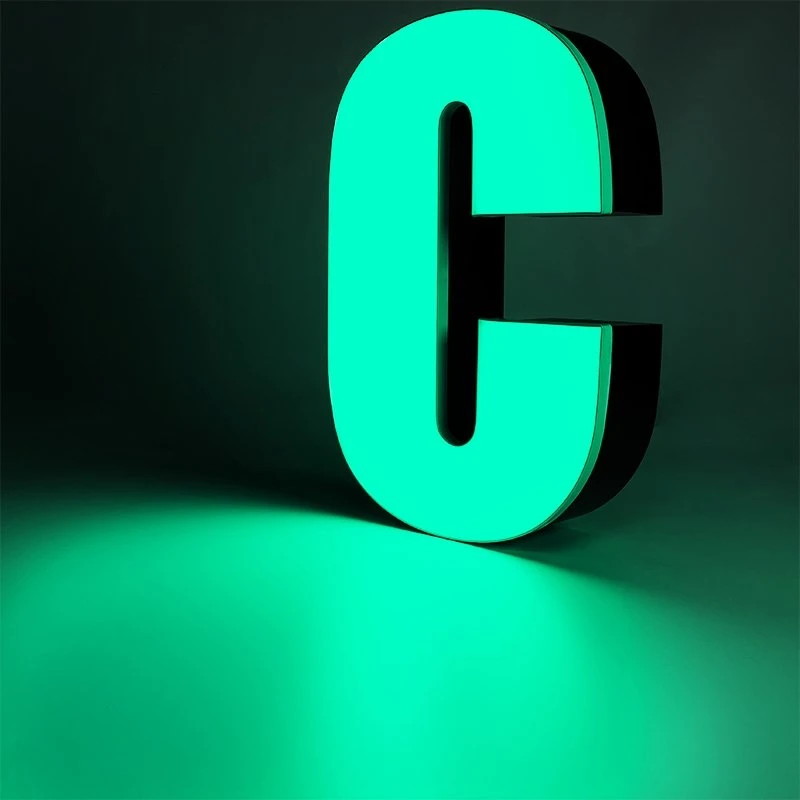

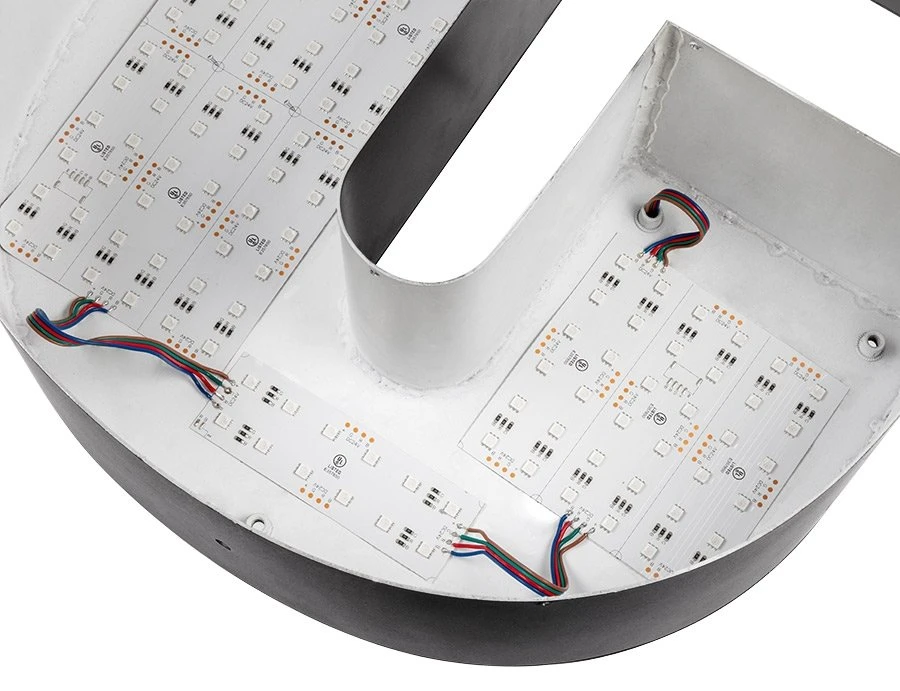

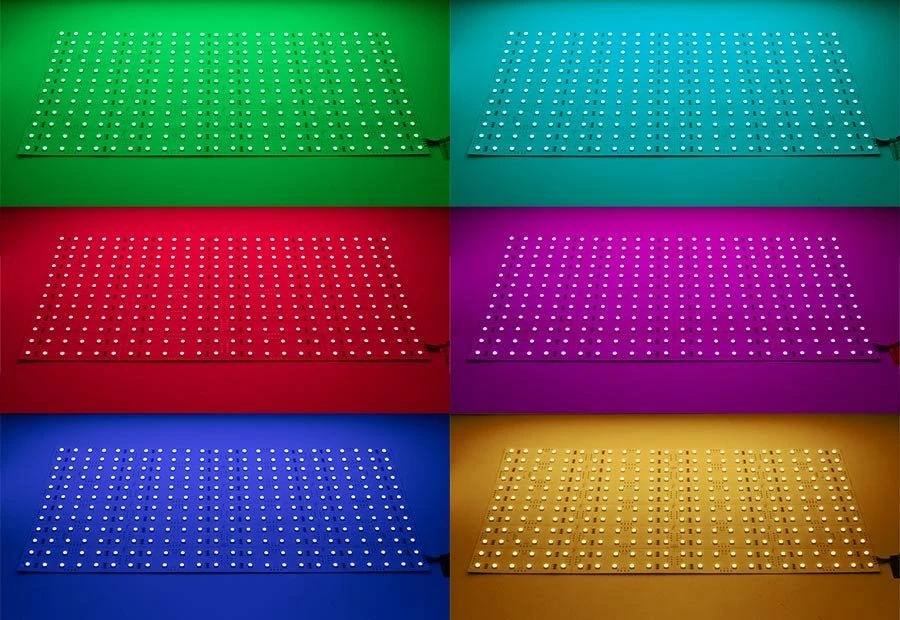

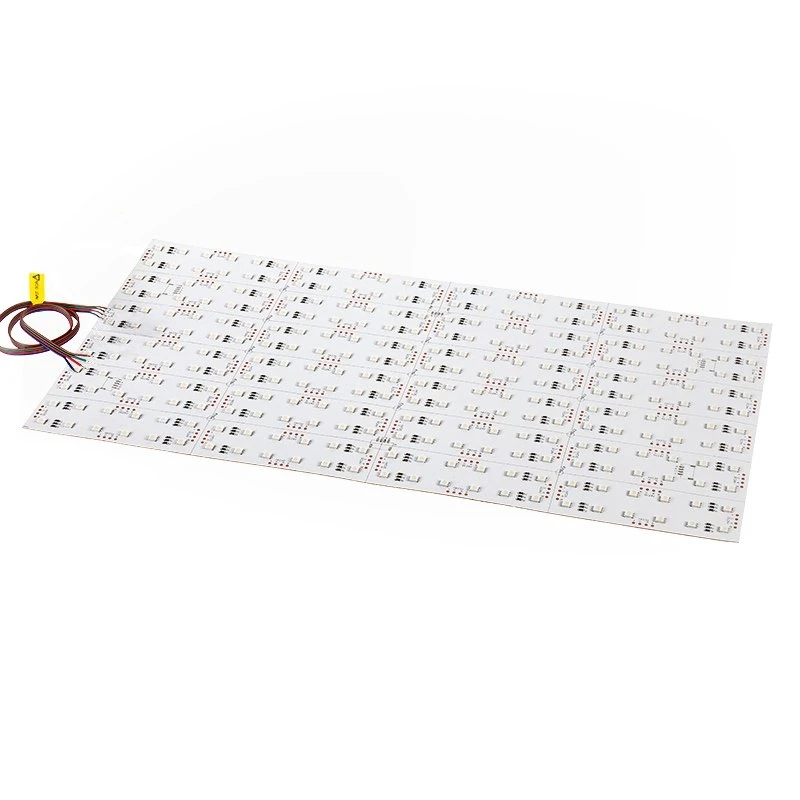

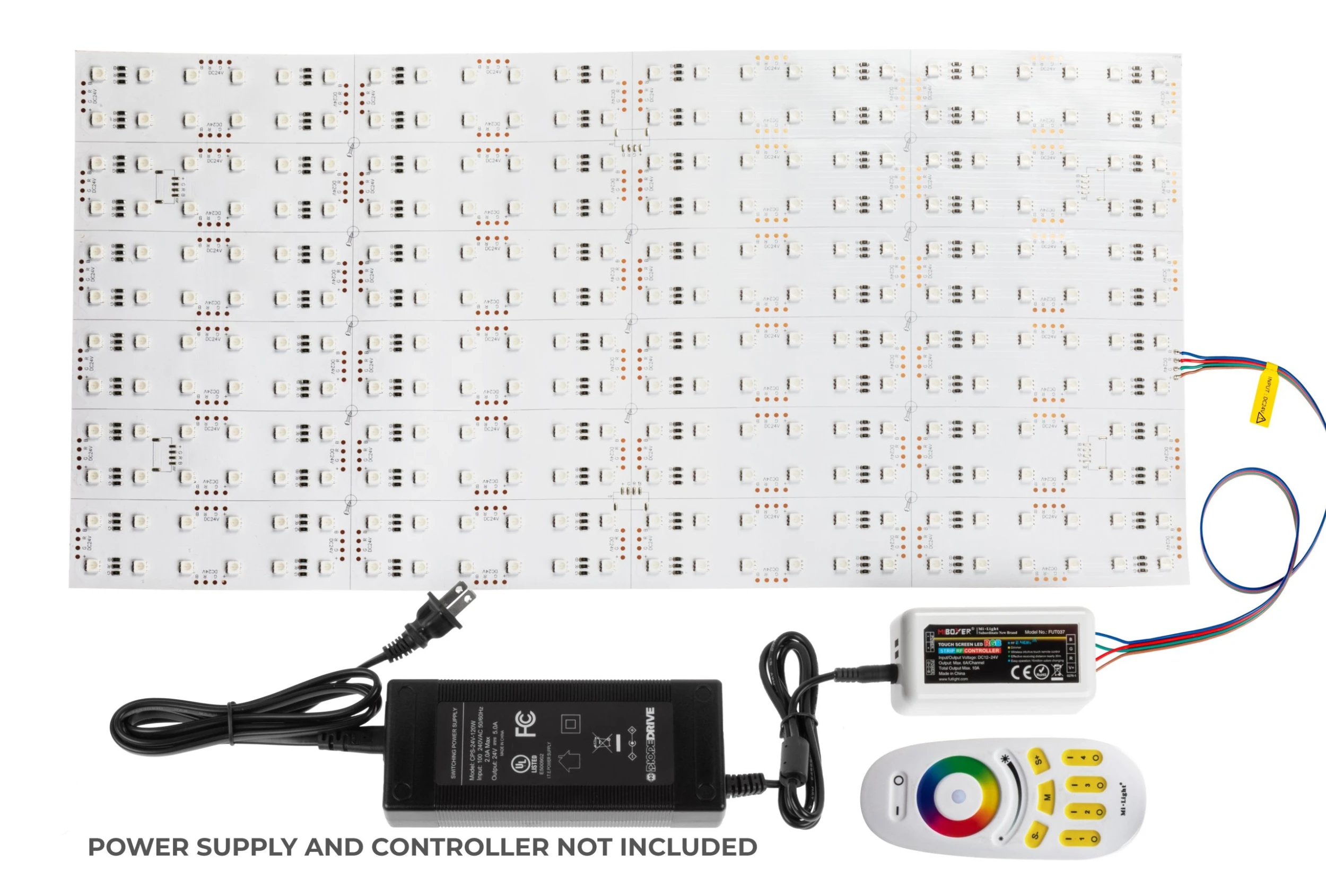

The LLS RGB series is a fully customizable and color-changing flexible LED sheet. This sheet is perfect for backlighting displays, light boxes, letters, logos, billboards, translucent materials, and more. The high density of LEDs, 288 LEDs per sheet, provides smooth, bright illumination free of hotspots. Easily link together multiple sheets or pieces using the onboard soldering connectors.

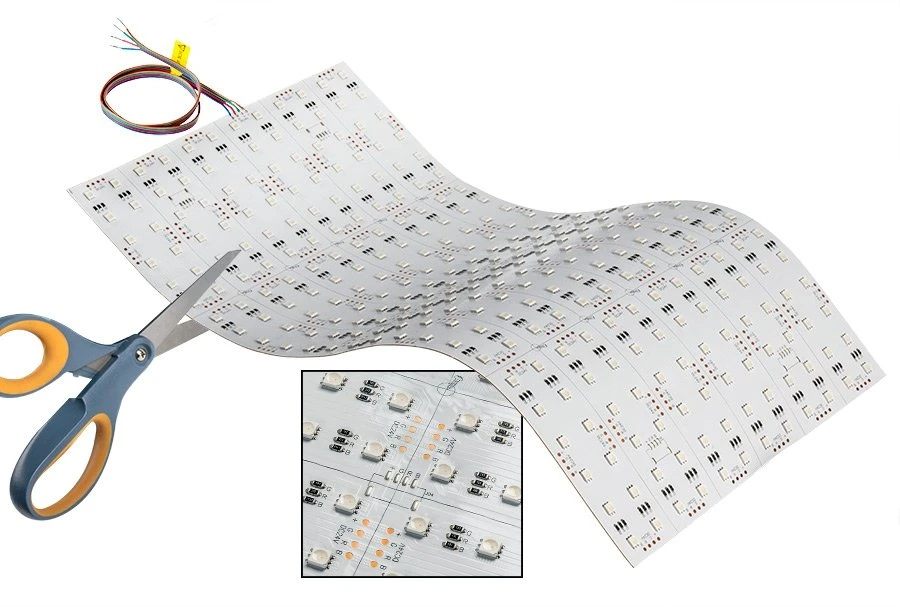

Please refer to the specification sheet for cutting recommendations. Using only the pre-marked lines when cutting the sheet is essential to maintaining electrical contact.
Product Details:

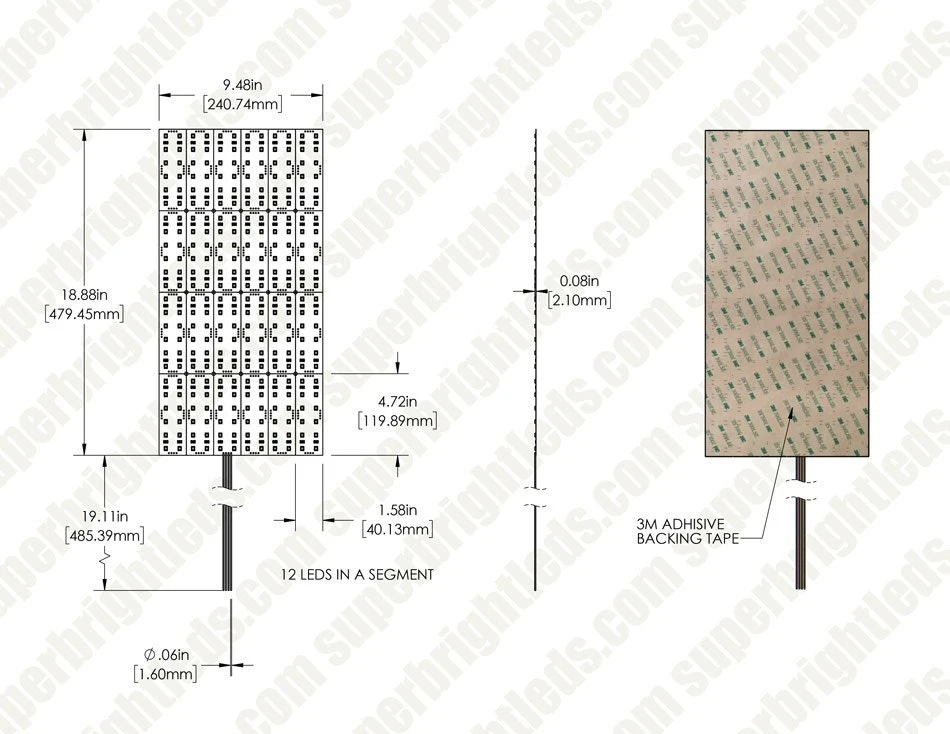

- Cuttable segments: every 4-3/4″ x 1-1/2″
- 12 LEDs per segment
- 4 x RGB solder points per segment
- Dimmable
- Max Run with Class 2 wiring: 1.5 sheets
- Dimensions: 18.9″ x 9.5″
- Thickness: 0.08in (2mm)
- Wire length: 19.5″ 22 AWG power wire
- IP20 rated for dry conditions
- 50000 hours L70 lifespan
- 24 VDC
- UL Listed, CE certified
- 5-year warranty
| Ambient Operating Temperature | -20~+45 °C (-4~+113 °F) |
|---|---|
| LED Beam Angle | 120° |
| Rated Life (L70) | 50000 Hours |
| Power Consumption | 60 Watts |
| Operating Voltage | 24 VDC |
| Max Run (Class 2) | 1.5 Sheets |
| LEDs per Segment | 12 |
| LED Type | 2835 SMD |
| IP Rating | IP20 |
| Certifications/Compliance | CE, UL Listed |
| Input Connection Type | Pigtail |
| Finish | White |
| Enclosed Fixture Rated | Yes |
| Dimmable | Yes |
| Dimensions | 18.9in x 9.5in |
| Current Draw | 2.5 A |
| Color/CCT | RGB |
| Segment Size | 4.72 in. x 1.58 in. (120 mm x 40 mm) |
