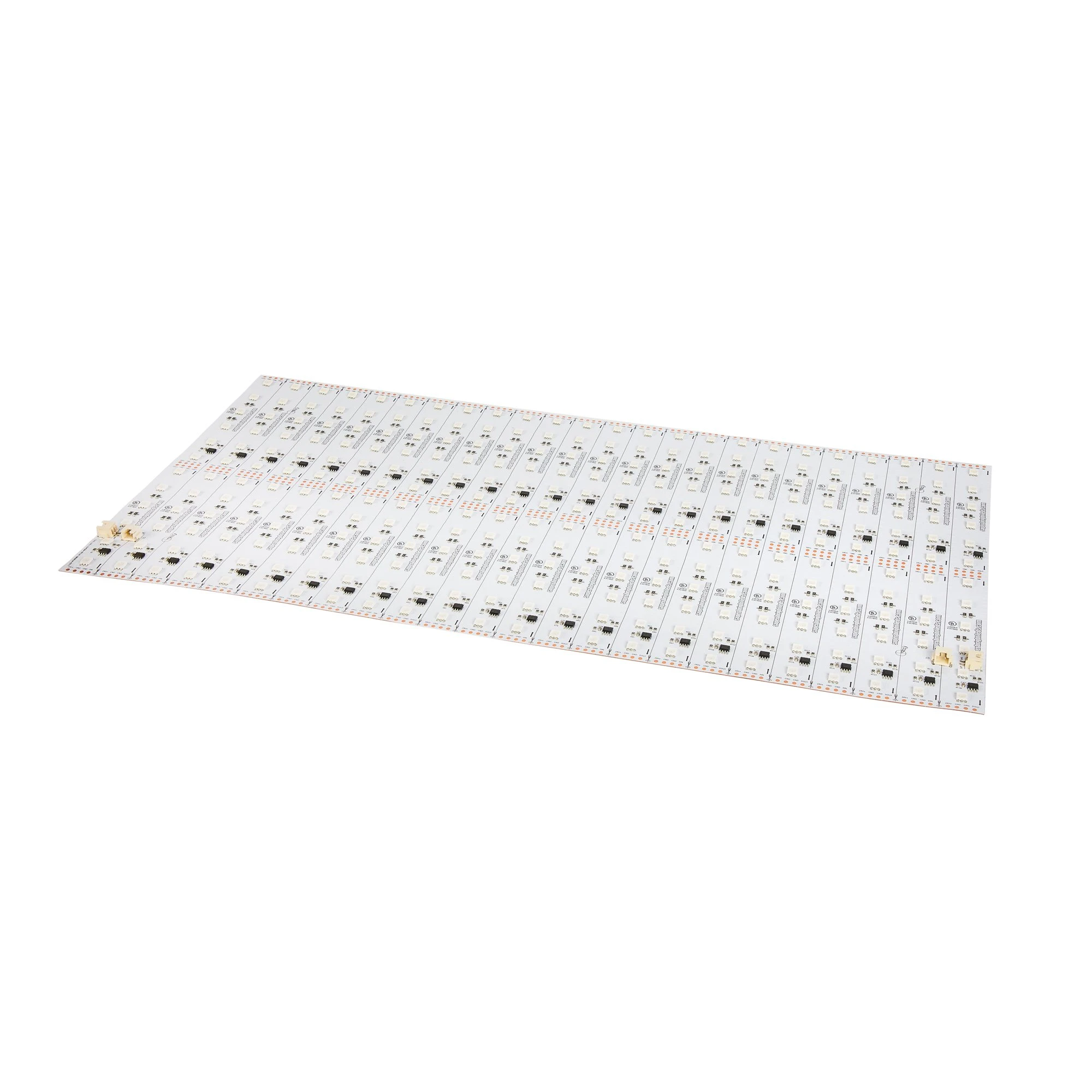

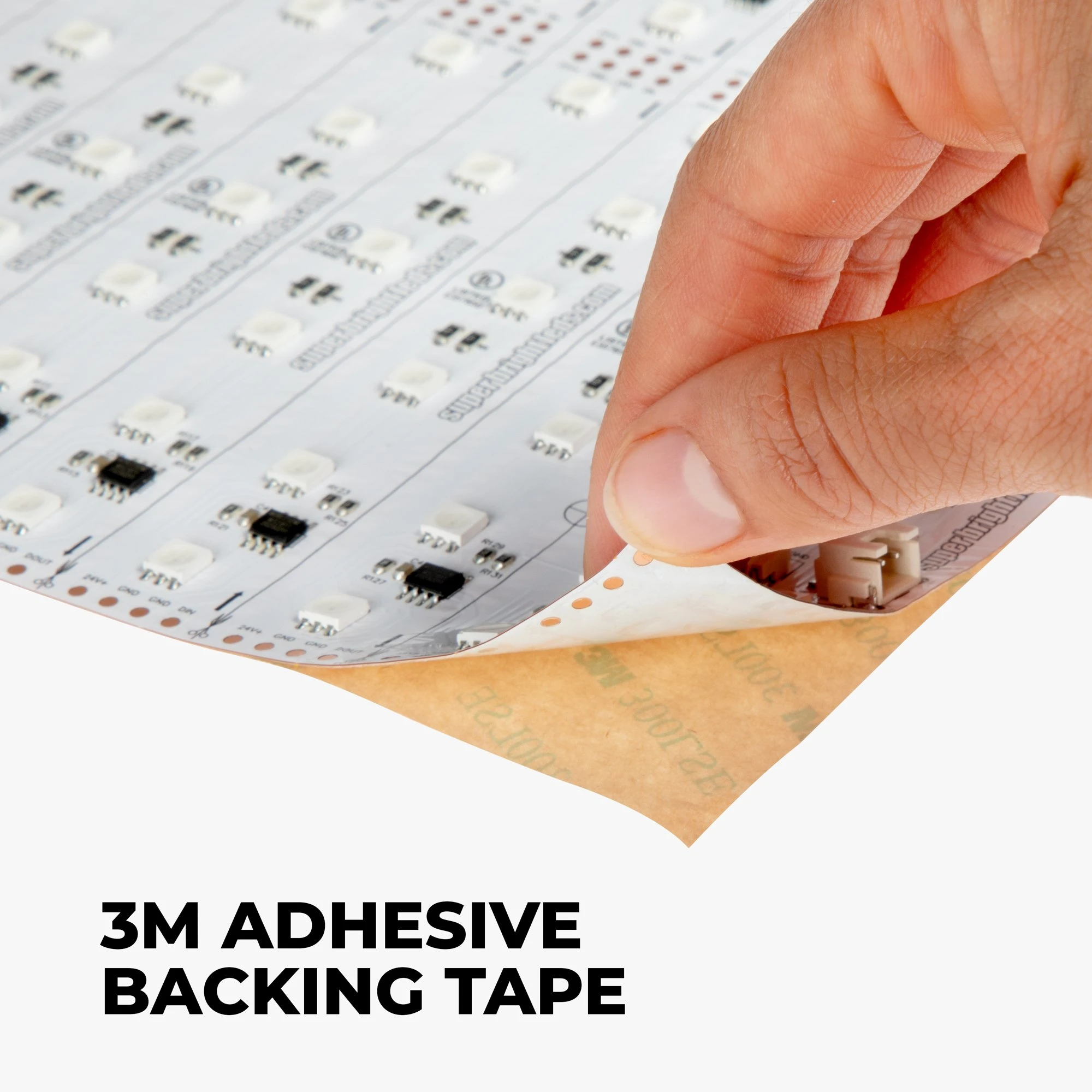

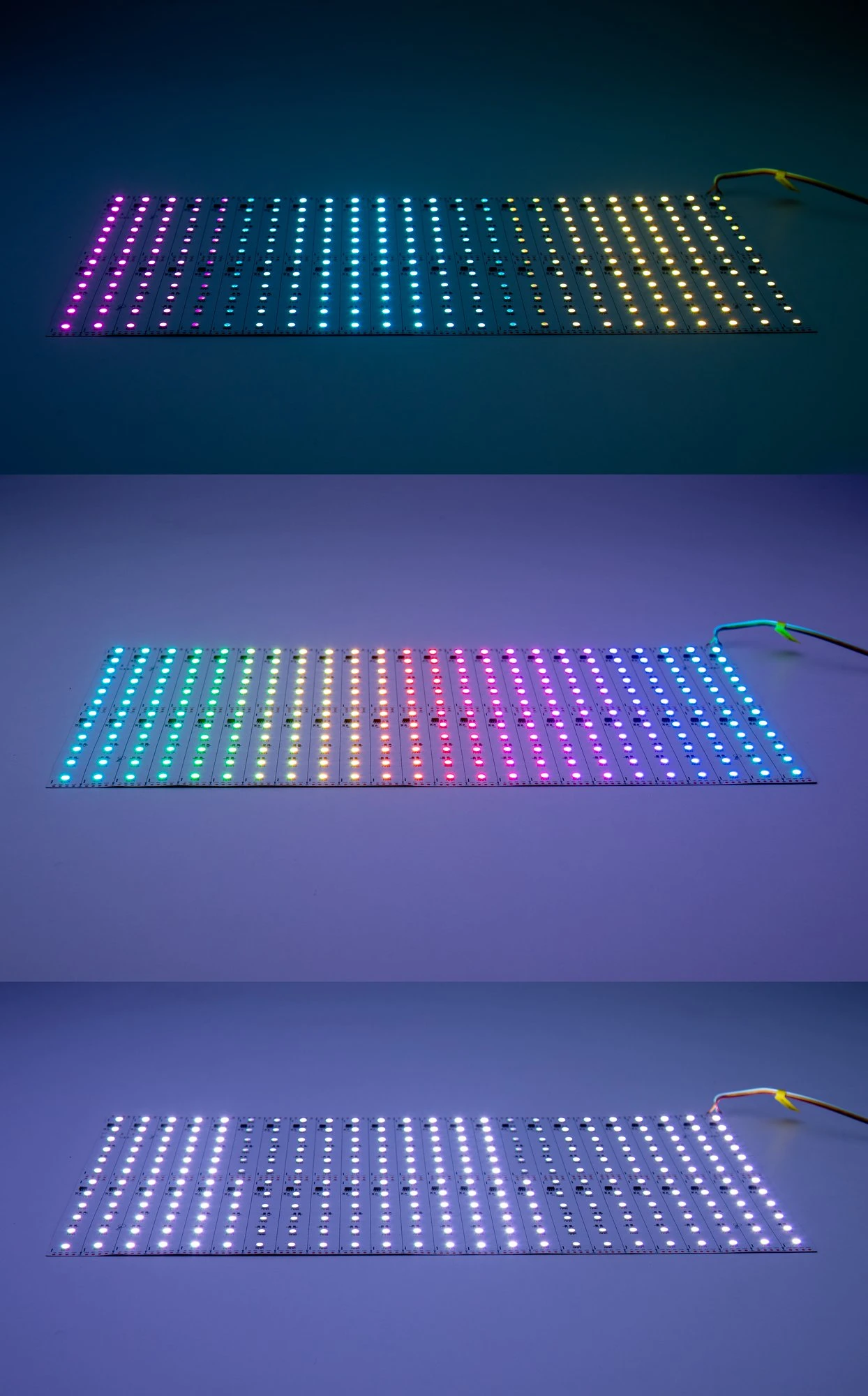

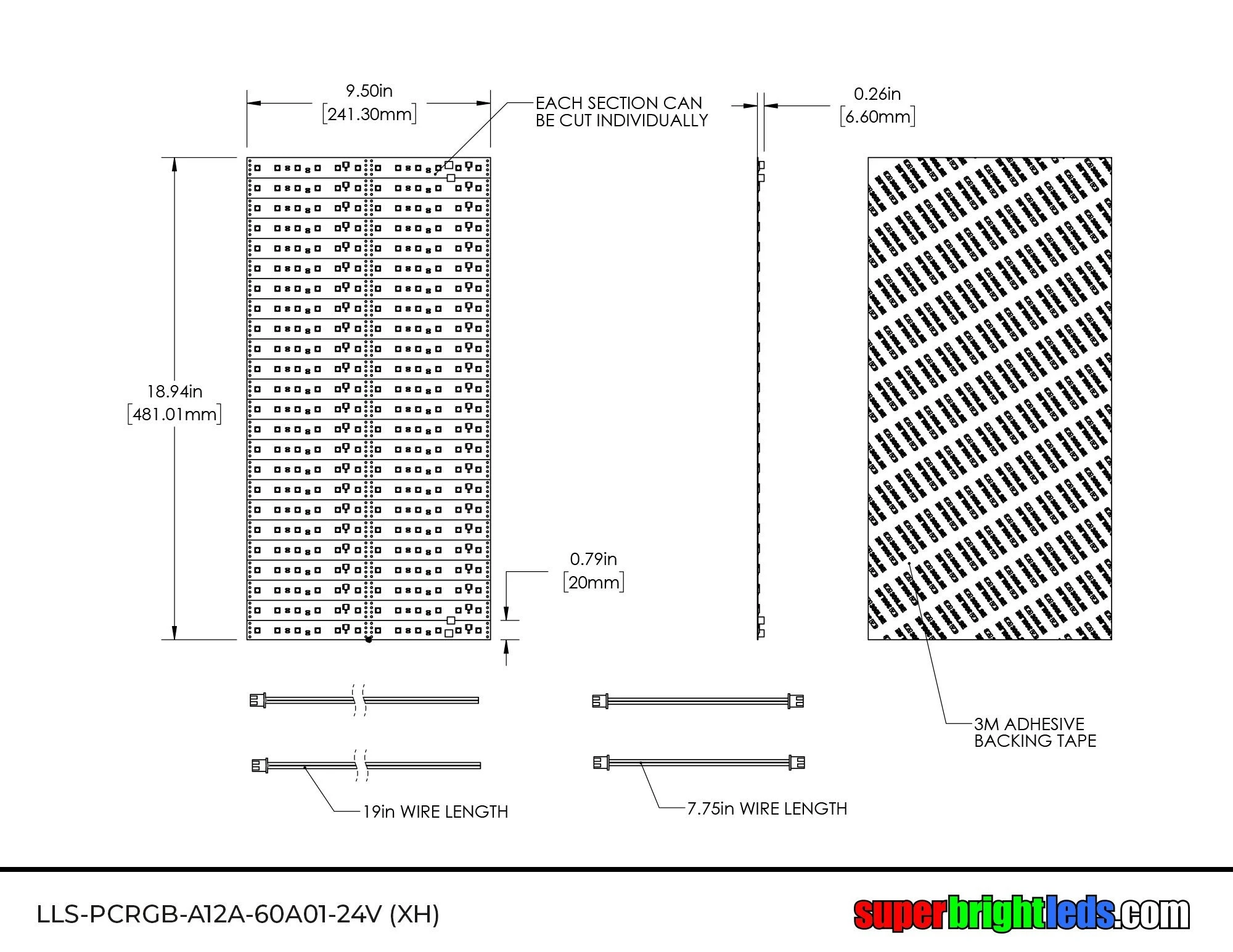

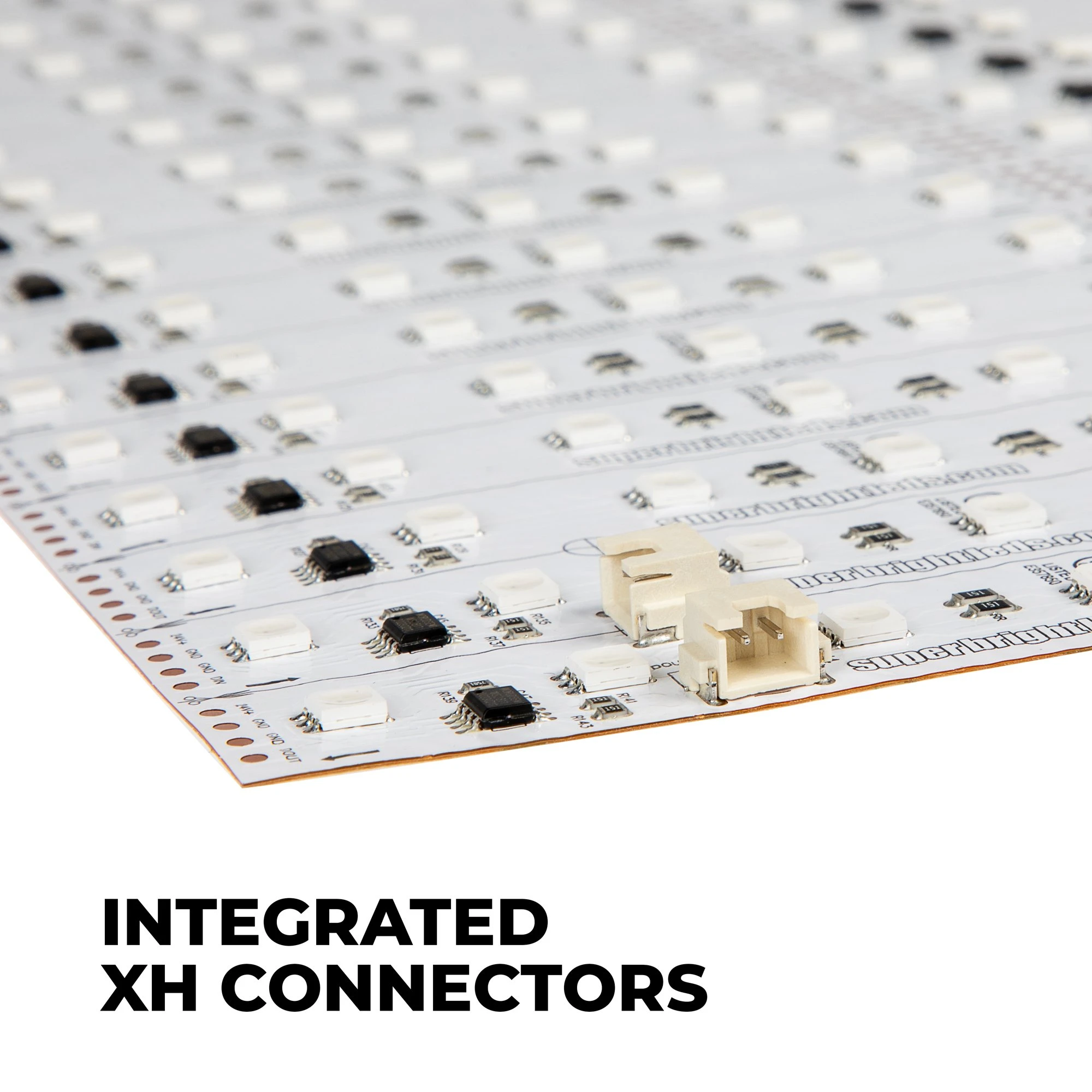

Wrap corners and trim to fit a unique shape with the Addressable RGB LED Light Sheet. The 18.9” x 9.5” sheet can be cut along the horizontal, vertical, or diagonal black lines of the rows to customize the flexible sheet. Even in signs or backlighting with low clearance, the slim light sheet delivers powerful lighting, perfect for signage applications. On-board XH connectors eliminate soldering and simplify installation. To connect multiple light sheets, use the included interconnect cable. To install, use the 3M™ adhesive backing, or fasten it with screws at the indicated spots. This light sheet has addressable RGB capabilities, allowing the individual LEDs to be customized using a controller (sold separately).
Product Details:
- Segment size: 4.72″ x 0.79″- 48 segments per sheet
- Max Run with Class 2 wiring: 1 sheet
- Input connection: 2-pin XH connectors
- PWM dimmable
- 24 VDC
- UL Listed
| Ambient Operating Temperature | -20~+45 °C (-4~+113 °F) |
|---|---|
| LED Beam Angle | 120° |
| Rated Life (L70) | 36000 Hours |
| Power Consumption | 60 Watts |
| Output Connection Type | XH 2-Pin Connector |
| Operating Voltage | 24 VDC |
| Max Run (Class 2) | 1.5 Sheets |
| LEDs per Segment | 6 |
| LED Type | 5050 SMD |
| IP Rating | IP20 |
| Certifications/Compliance | UL Listed |
| Input Connection Type | XH 2-Pin Connector |
| Finish | White |
| Enclosed Fixture Rated | Yes |
| Dimmable | Yes |
| Dimensions | 18.9in x 9.5in |
| Current Draw | 2.5 A |
| Color/CCT | Addressable RGB |
| Segment Size | 4.72 in. x 0.79 in. (120 mm x 20 mm) |
