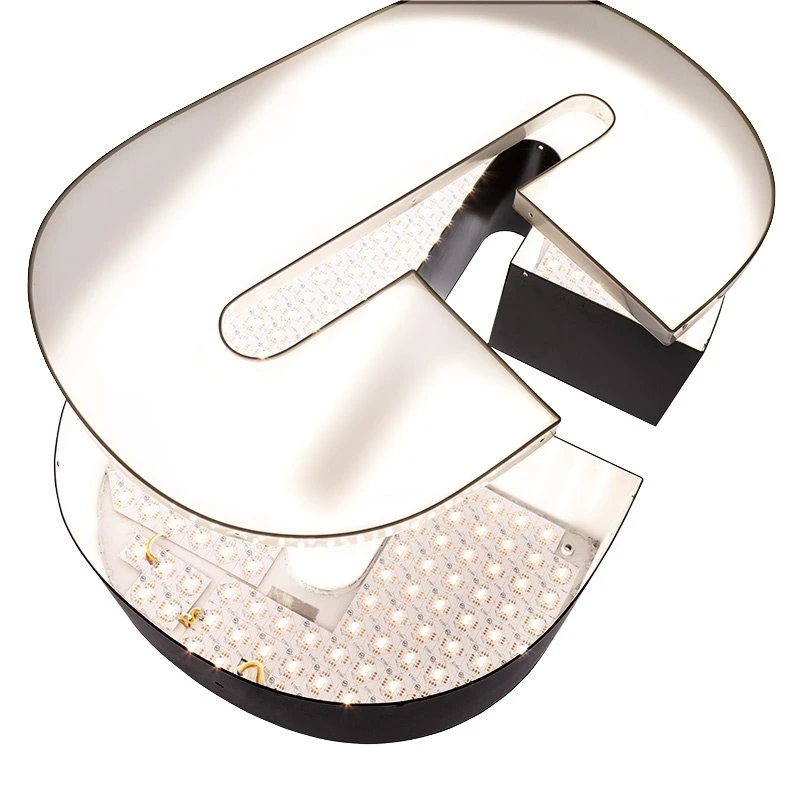

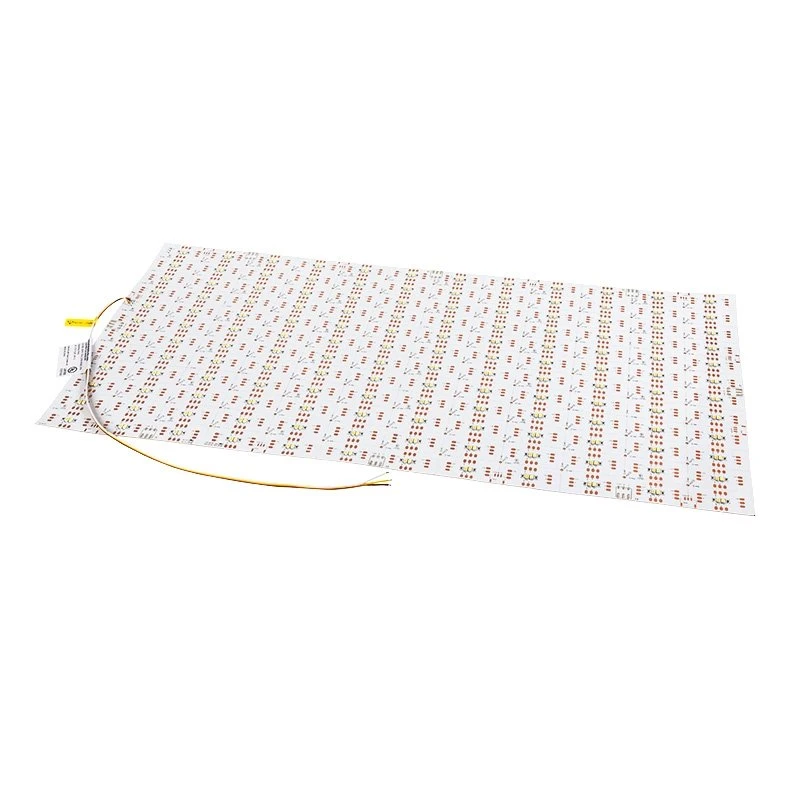

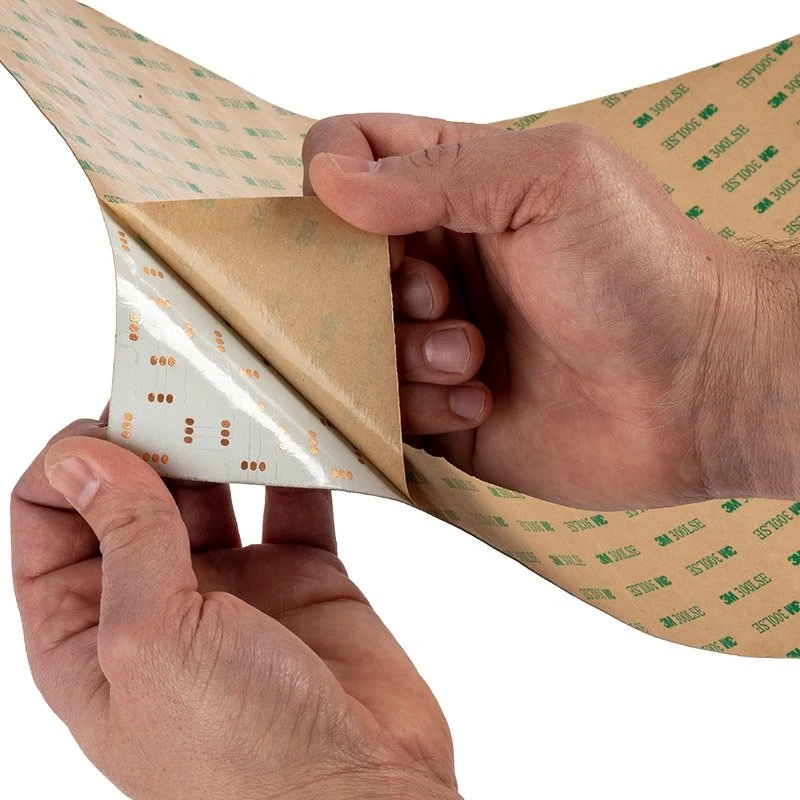

Trim the LED light sheet to fit unique shapes or wrap corners. This flexible sheet contains 288 segments that can be cut in any configuration along the horizontal, vertical, or diagonal lines. The 2 in x 1 in segments ensure even light distribution, ideal for signs or backlighting. Apply this dimmable sheet by peeling off the 3M™ adhesive backing or fastening it with screws at the indicated spots. Select CCT using a controller (sold separately).

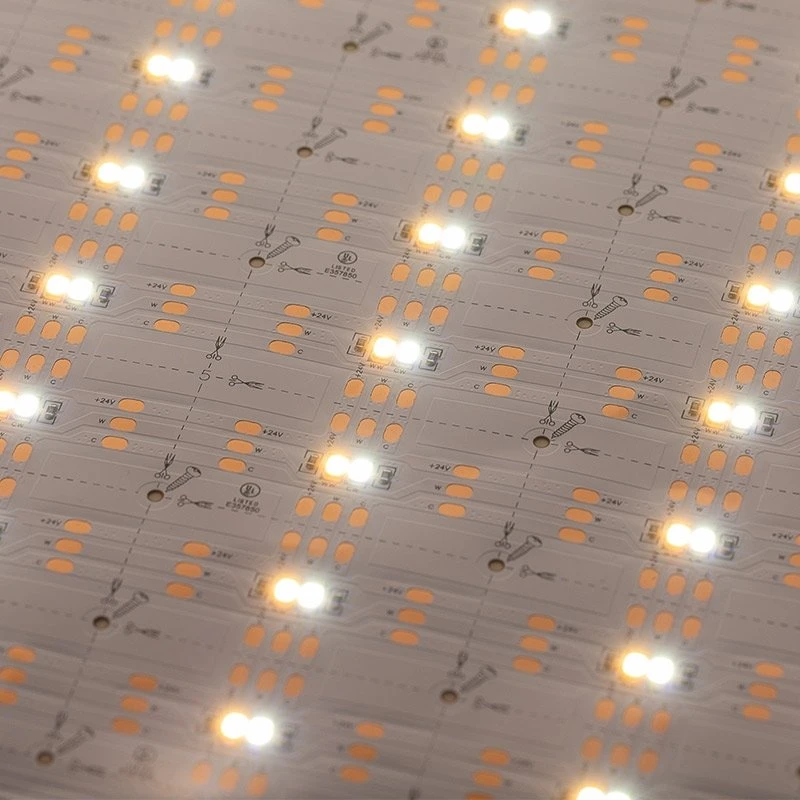

Please refer to the specification sheet for cutting recommendations. Using only the pre-marked lines when cutting the sheet is essential to maintaining electrical contact.
Product Details:

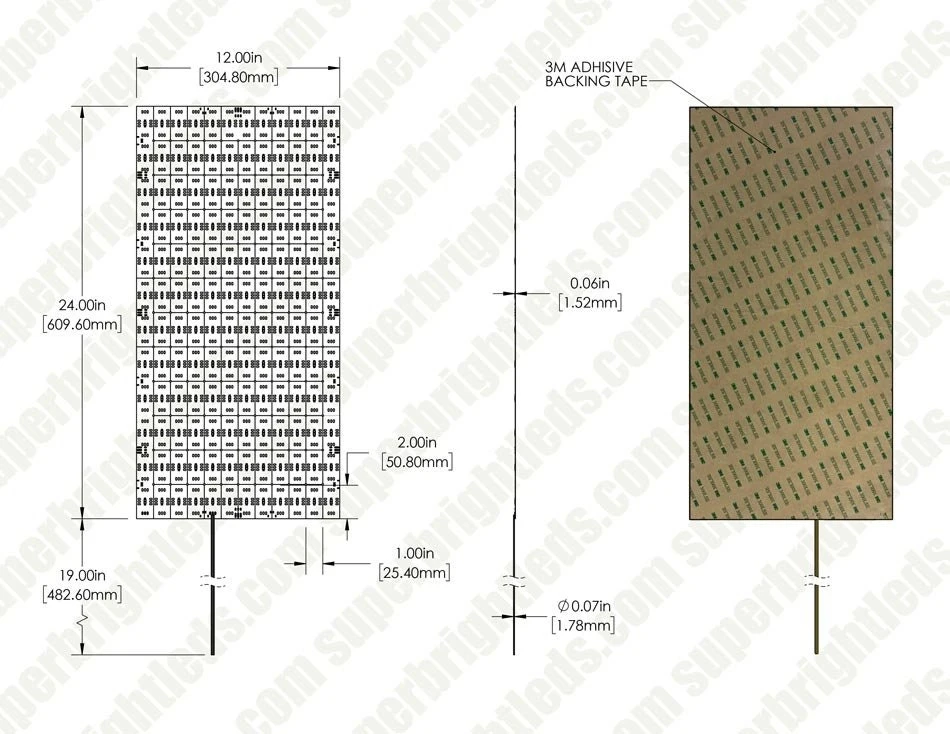

- Segment size: 2 in. (50.8 mm) x 1 in. (25.4 mm)
- Max run with Class 2 wiring: 3 full sheets
- Enclosed fixture rated 30 mm

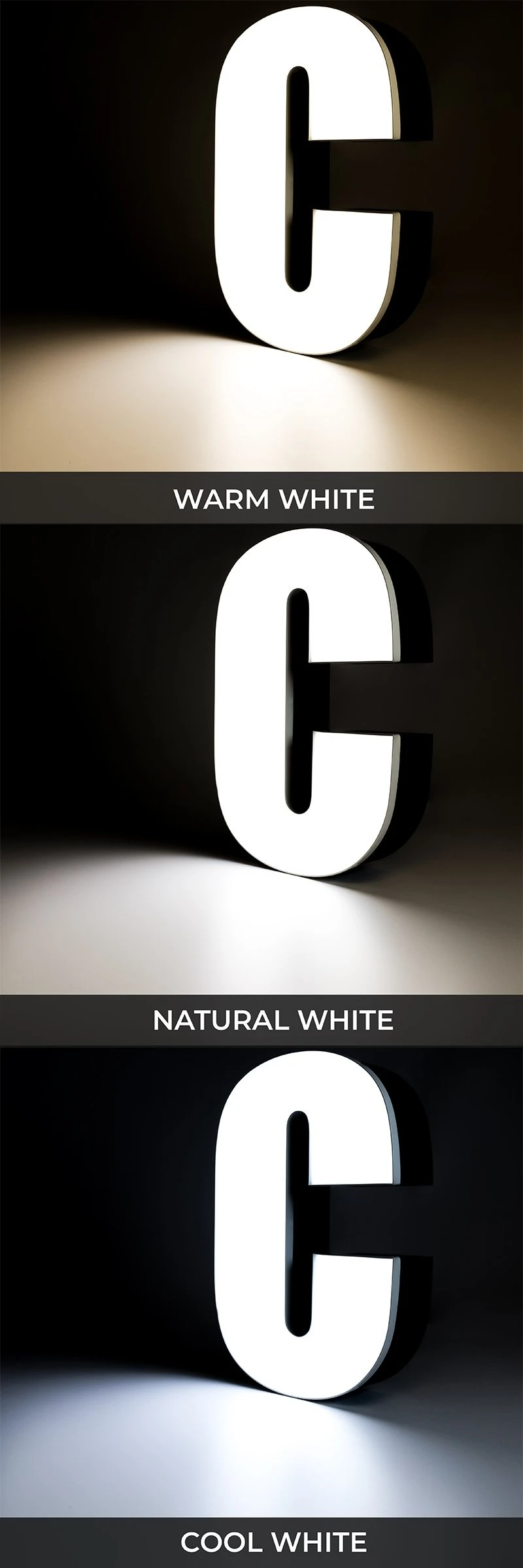

- Use a controller to select desired CCT (sold separately)
- IP20 rated for dry conditions
- PWM dimmable
- 24 VDC
- UL Listed
- 5-year warranty
| Ambient Operating Temperature | -20~+45 °C (-4~+113 °F) |
|---|---|
| Input Connection Type | Pigtail |
| Rated Life (L70) | 50000 Hours |
| Power Consumption | 30 Watts |
| Operating Voltage | 24 VDC |
| Max Run (Class 2) | 3 Sheets |
| LEDs per Segment | 2 |
| LED Type | 2835 SMD |
| LED Beam Angle | 120° |
| IP Rating | IP20 |
| Finish | White |
| CCT Value | 2700-6500K |
| Environmental Rating | Non-weatherproof, Suitable for Dry Locations |
| Enclosed Fixture Rated | Yes |
| Efficacy | 92 lm/W |
| Dimmable | Yes |
| Dimensions | 24in x 12in |
| Current Draw | 1.3 A |
| Color/CCT | Tunable White |
| CRI | 80+ |
| Certifications/Compliance | CE, UL Listed |
| Segment Size | 2 in. x 1 in. (50.8 mm x 25.4 mm) |
