$46.89
- No Compromise on Quality
- Where quality meets convenience.
- Free Shipping, No Compromise on Quality
- Your questions, our prompt answers.

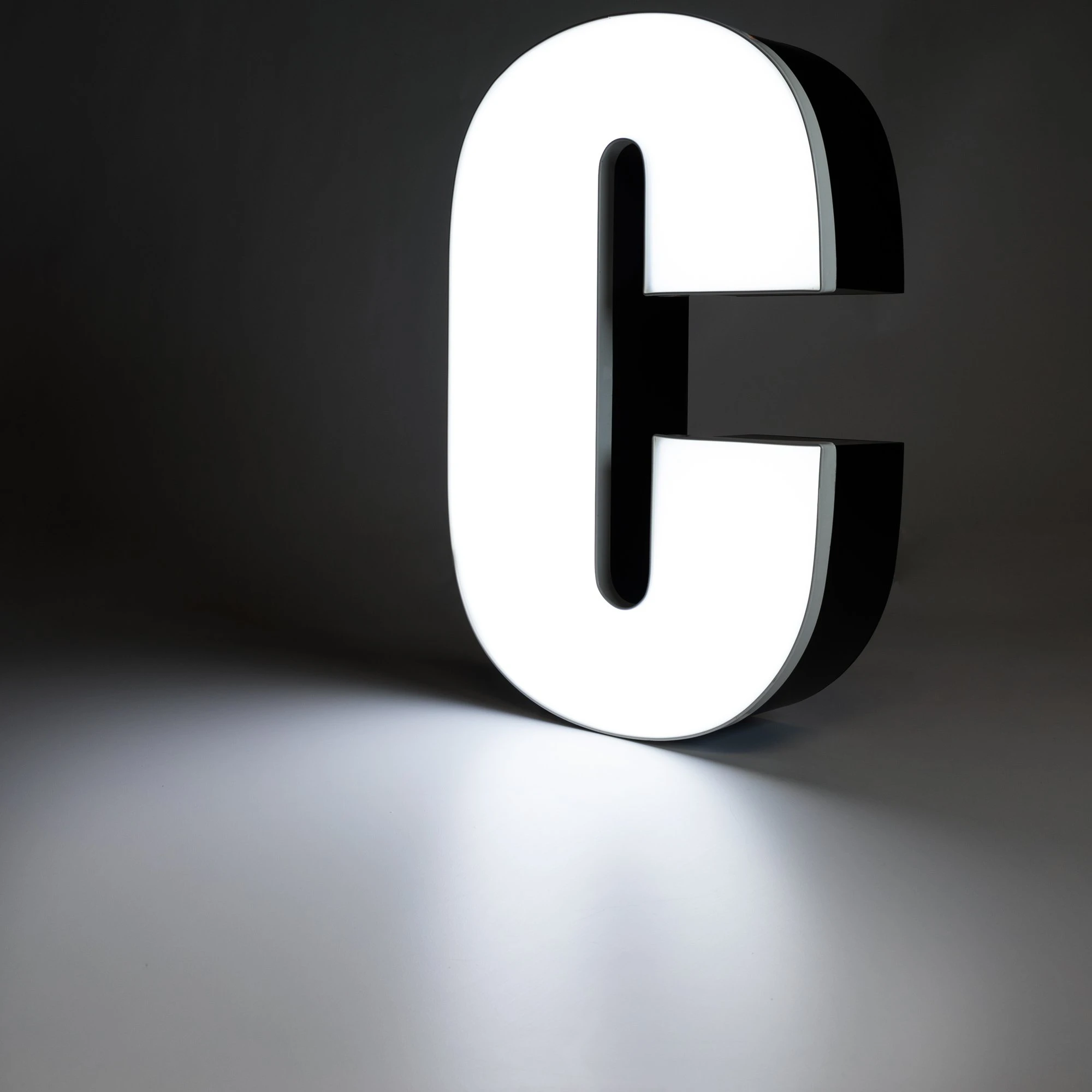

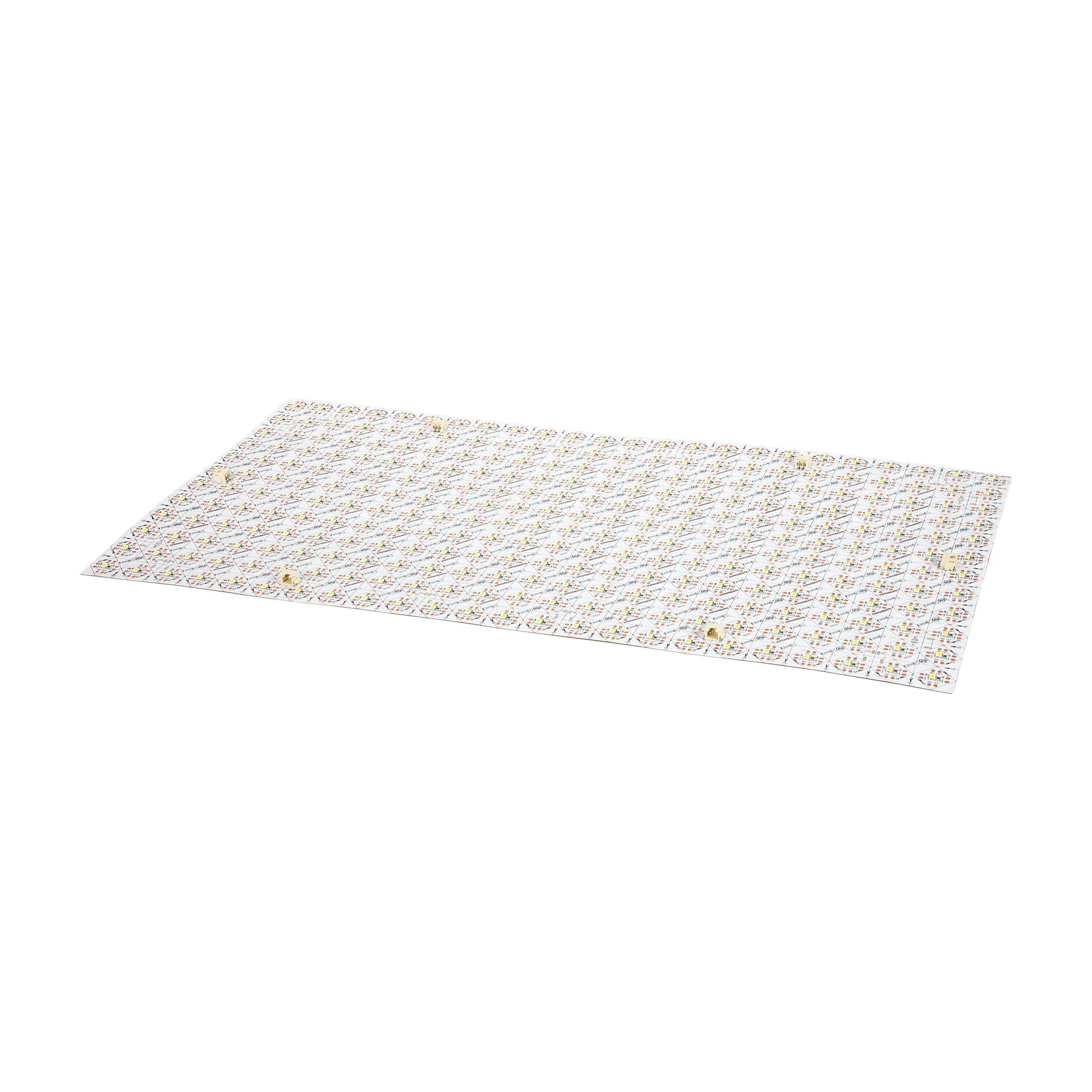

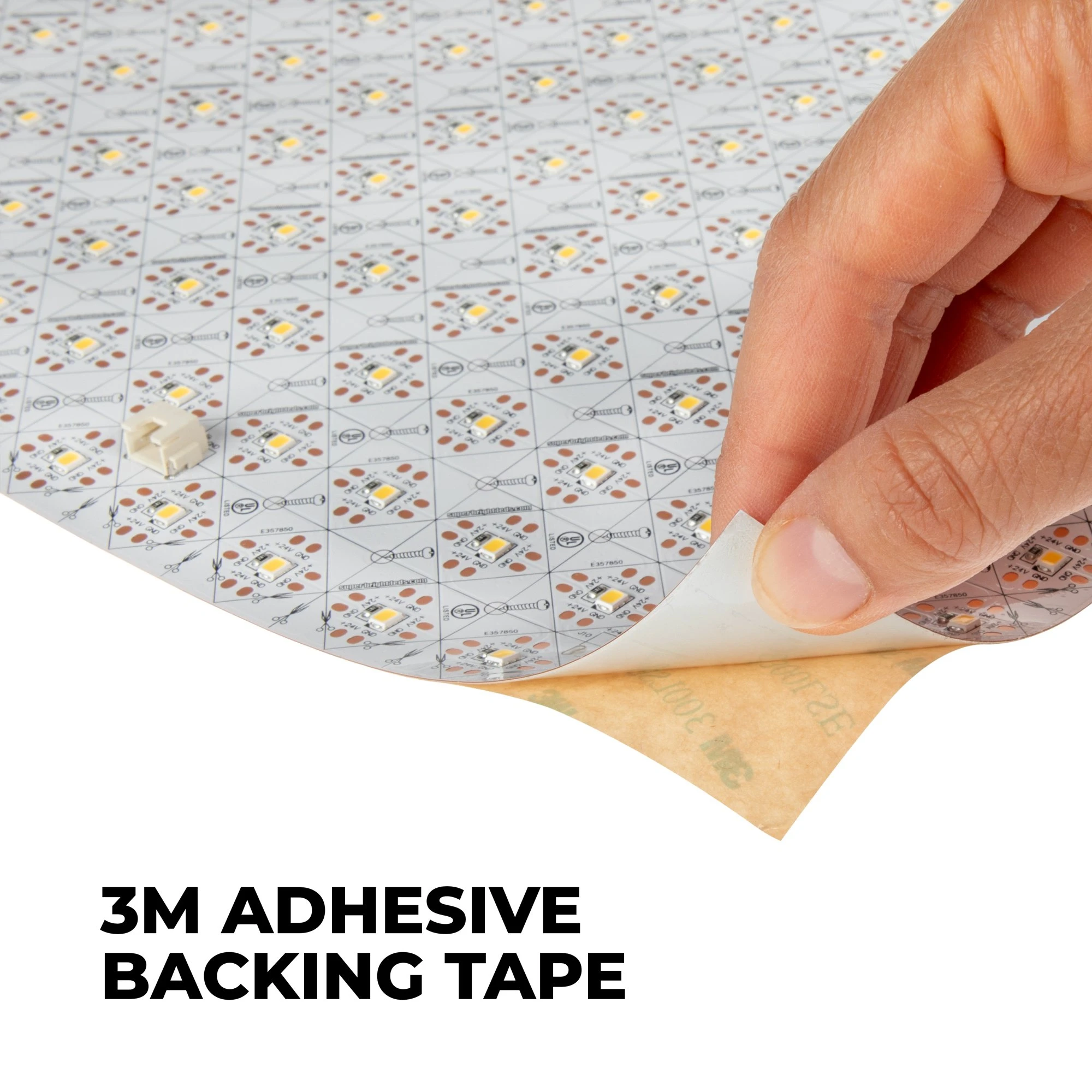

Trim and cut the 24V LED light sheet to fit unique shapes or wrap corners. This flexible sheet contains 24 columns x 12 rows of segments that can fit any shape by cutting along the horizontal, vertical, or diagonal lines. The segments have cut lines along the board to shape the light sheet to the application, ideal for signs or backlighting. On-board XH connectors eliminate soldering and simplify installation. To connect multiple light sheets, use the included interconnect cable. To install, use the 3M™ adhesive backing, or fasten it with screws at the indicated spots.
Product Details:
- Segment size: 0.79″ x 0.79″- 288 segments per sheet
- Max Run with Class 2 wiring: 3 sheets
- Input connection: 2-pin XH connector
- Includes one 0.5m pigtail connector and one 8cm interconnect
- 1.18″ (30mm) enclosure rating
- PWM dimmable
- 24 VDC
- UL Listed
- 5-year warranty
| Color Options | Cool 5000K, Natural 4000K, Warm 3000K |
|---|---|
| LED Beam Angle | 120° |
| Rated Life (L70) | 50000 Hours |
| Power Consumption | 30 Watts |
| Output Connection Type | XH 2-Pin Connector |
| Operating Voltage | 24 VDC |
| Max Run (Class 2) | 3 Sheets |
| LEDs per Segment | 1 |
| LED Type | 2835 SMD |
| IP Rating | IP20 |
| Ambient Operating Temperature | -20~+45 °C (-4~+113 °F) |
| Input Connection Type | XH 2-Pin Connector |
| Finish | White |
| Enclosed Fixture Rated | Yes |
| Dimmable | Yes |

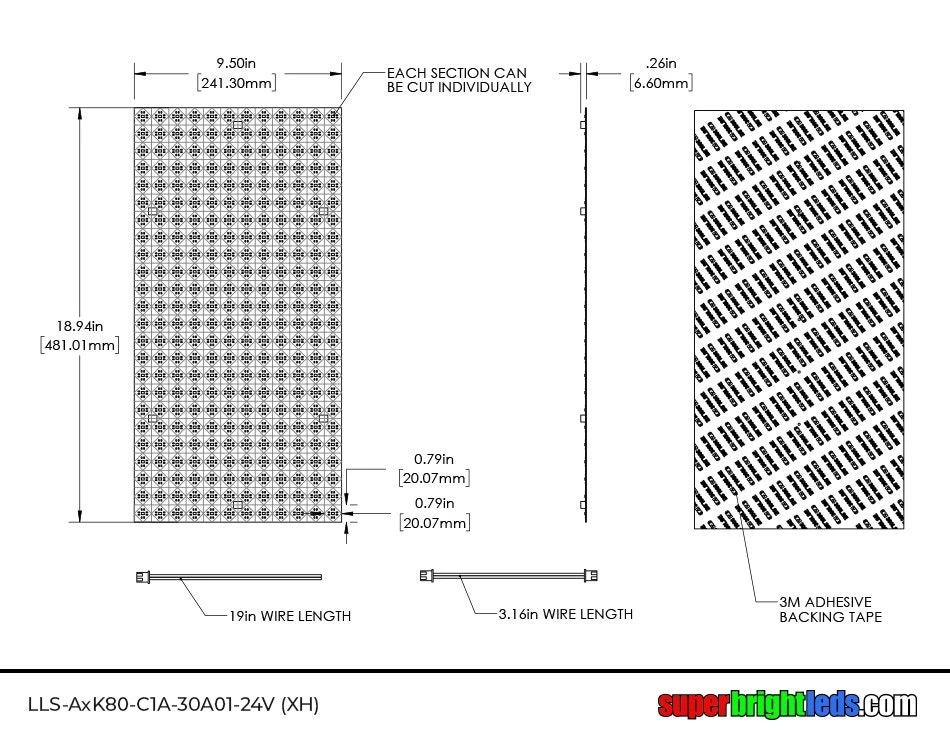

| Dimensions | 18.9in x 9.5in |
| Current Draw | 1.25 A |
| CRI | 80+ |
| Certifications/Compliance | UL Listed |
| Segment Size | 0.79 in. x 0.79 in. (20 mm x 20 mm) |
